Sale!

Cheap CNC Router 4x8 Wood CNC Router Table CNC Router Machine For Sale

$4,300.00 $4,000.00

The cheap 4×8 CNC router table refers to CNC router table size is 4x8ft CNC router, which is also called 1325 4×8 CNC router table kit. The best 4×8 CNC router design for plywood and other materials. Cheap CNC router table with a single spindle for sale at a low price.

Model                          ABS-1325

Rating                         ♥ ♥ ♥ ♥ ♥   4.0/5 based on 28 ratings and reviews

Spindle                        3kw as standard (4.5kw or 6kw for option)

Cheap CNC Machine Table 4x8 for Sale

Whether you are looking for an industrial 4×8 CNC cabinets router furniture machine with an 8-hour shift or a private use cheap CNC router, ABS-1325 4×8 table must be a good choice. The 4×8 CNC router table is designed for plywood or other materials quickly and accurately with stepper motor and driver. T-slot CNC Router Table or vacuum table for 4×8 CNC router table cheap also depends on your choice. It’s all guarantees the stability of carving or cutting the material. The wood CNC machine 4×8 cutting materials and shapes are spread across wide industries. It can be said that the 4×8 CNC router price is absolutely reasonable and the cheap 4×8 CNC small table machine is absolutely cost-effective.If you want to know other CNC wood router,Such as the 4×4 CNC router machine which is more cheap.Just contact us,we will apply you ASAP!

4x8 CNC Router Table Video

Feature of Cheap 4x8 CNC Router Sale

High Precision Cutting Best Selling CNC Machine for 4x8 small cNC machine

The 4x8 CNC machine XYZ axis Taiwan Hiwin square rail makes the gantry and spindle moving at high speed with high precision. CNC kit 4x8 adopts Hiwin square rail with high rigidity and very durable. XY axis German Helical rack and pinion are directly coupled to the stepper motor and pinion. This 4x8 CNC router cheap configuration ensures that the accuracy is less than ±0.03mm when the max 4x8 work table speed is 20,000mm/min.

Stable, Stronger and More Durable Structural Design of CNC Machine Table 4x8

The Heavy structure adopts thicken steel square which improves the stability of wood CNC 4x8. This Stronger structure is necessary for cutting solid materials such as hardwood. During the 4x8 wood CNC machine cutting and carving process, the XYZ axis remains stationary against external cutting forces.

Long time Operation With High-power Stepper Motor of Cheap CNC Router

Stepper motor and driver do not require regular maintenance. This not only reduces maintenance downtime but also spindle is able to run normally for a long time. Coupled with the fast working speed, the CNC machine 4x8 efficiency is greatly improved.

Compatible with Any Advanced Software for 4x8 CNC Wood Router

Software including Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks is run on the system of CNC table 4x8. You can use the CNC wood router 4x8 quickly without wasting the cost of training labor. This is simple and efficient for you.

Application In Widely Industries For Affordable CNC Router 4x8 Machine

Navigation Bar
4×8 CNC router table Application IndustryAdvertising Industry
Furniture Industry
Decoration Industry
Musical Instrument Industry
Gift Customization Industry
Art Model Industry
Other
Material that can be cut by Cheap CNC routerWoodMDF
PlywoodCarbon Fiber
Composite BoardMelamine Board
AcrylicOther

CNC 4x8 Router Table Technical Parameters

Navigation Bar
Descriptions 4×8 CNC Router Parameters
Model ABS-1325
Working Size 1500*3000mm/5x10ft 2000*3000mm/7x10ft 2000*4000mm/7x13ft Other size
CNC Router Table Size 1450*2950mm
Accuracy ±0.03mm
CNC Router Table Surface T-slot CNC Router Table ( vacuum table for option
Frame Thicken steel Square Heavy structure
X, Y Structure Gear and rack Transmission
Z Structure Taiwan TBI Ball Screw
Max. Rapid Travel Rate 25,000mm/min
Max. Working Speed 20,000mm/min
Spindle Power 3kw as standard (4.5kw or 6kw for option) for 4×8 CNC
Spindle Speed 0-18,000RPM for air cooling spindle, 0-24,000RPM for water cooling spindle
Collet ER25
Working Voltage AC380V/3PH/50Hz
(option:220V or custom made)
Command Language G Code
Operating System Mach 3 (DSP, Nc-studio for option)
Computer Interface Ethernet or USB
Software Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks,etc.
Running Environment Temperature: 0℃~45℃ Relative Humidity: 30%~75%
Machine Power 5kw
Machine Dimension 2150*3000*1800mm
Packing Size 2250*3200*2100mm
Net/Gross Weight 1100kg/1280kg

Main Parts of Cheap CNC Router

Navigation Bar
ABS-1325-CNC-Router-spindle

High Frequency Powerful Spindle of 4x8 CNC router kit

The cheap 4×8 CNC machine comes standard with 3.2kw high-frequency spindle and you can also select 4.5kw or 6kw spindle.This high-quality precision spindle requires no maintenance. In addition, programming speed from 6000 to 24000 RPM, not only powerful but also no need to worry about noise.

MACH 3 Controller of CNC machine for 4x8 plywood

The MACH3 system connected to the cheap CNC woodworking router’s computer is used to control the 4×8 CNC wood table kit tool. MACH3 is developed by American programmers and is the most commonly used software for CNC machines worldwide. When you are not going to use the MACH3 system, don’t worry, our alternative systems are DSP, Nc-studio, etc. The Ethernet interface controller card has high reliability and anti-interference.

ABS-1325-CNC-Router-Mach3-controller
ABS-1325-CNC-Router-rack-pinion

XY Helical Rrack and Pinion of 4x8 wood CNC machine

The 4×8 CNC router table cheap uses precision helical gear racks on the X and Y axes. The rack is installed upside down to prevent dust and debris from accumulating in the drive system. The precision gearbox is directly coupled to the stepper motor and pinion. This eliminates the inaccuracy of belt tensioning and ensures high-speed processing when the system accurately positions the spindle of the 3 axis CNC router 4×8.

Z Axis TBI Ball screw

Z axis is with TBI ball screw to ensure the CNC machine for wood 4×8 with higher precision and longer service life.

ABS-1325-CNC-Router-ballscrew
ABS-1325-CNC-Router-Hiwin-guide-rail

XY Z Axis Hiwin Square Rail of CNC Table Machine

Hiwin square rail of Chinese 4×8 CNC wood Router has higher stability and stiffness, which allows the gantry and main shaft to move at high speed and high precision. The quality of Hiwin square rail is very good and more durable.

Aluminum CNC Router Table of wood CNC machine 4x8

The cheap 4×8 CNC router table machine with “T” groove, the table for mechanically fixing the machine is made of special reinforced aluminum plate, and is separated by grooves to accommodate the fixture.

ABS-1325-CNC-Router-aluminum-table
Tool Calibration Sensor

Tool Calibration Sensor

Hard limit block

Hard limit block

Reserved Position for Forklift

Reserved Position for Forklift

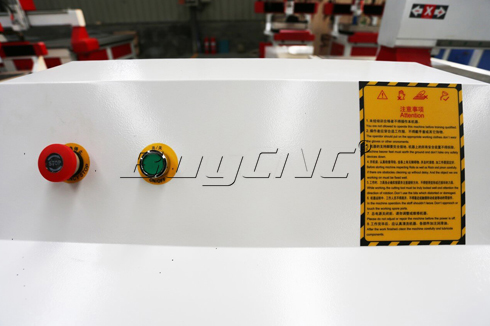

Double Insurance Emergency Stop Button

Double Insurance Emergency Stop Button

Dust-proof cover for the guide rail and the rack

Dust-proof cover for the guide rail and the rack

TBI High-Precision Ball-screw Transmission (Taiwan)

TBI High-Precision Ball-screw Transmission (Taiwan)

Optional Parts of 4x8 CNC Router Table Kit

Navigation Bar
DSP Controller

DSP Controller

Oil mist Coolant System

Oil mist Coolant System

7.5kw Vacuum Pumps

Vacuum Pump

Projects of Cheap 4x8 CNC Router Table

Navigation Bar
cnc-wood-carving

Strong Factory Strength of 4x8 CNC router sale

Navigation Bar
CNC Machining
Buycnc Machine Assembly Plant

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our 4×8 CNC machine are with higher precision.Not only the machine frames but also the small machining parts are machined by ATC CNC Center too. We can Provide other CNC wood routers for you,such as the 4×4 CNC router machine,

High Precision Installation for 4x8 CNC Router Table Kit

Navigation Bar
ABS-1325-CNC-Router-high-precision-installation

During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the 4×8 CNC router table cheap machine.

Our Service of CNC wood router cheap

Navigation Bar

Packing for Affordable 4x8 CNC Router

  • Step 1: PVC film packing, which can ensure that the CNC router table 4×8 is completely covered, avoiding water and rust.
  • Step 2: Wooden box packing, with a fixed template on the outermost layer.
  • Step 3: All of the packing are inspected carefully by QC before delivery.
ABS-1325 CNC Router plywood case packing
ABS-1325 CNC Router Pro-Sale Service

Pro-Sale Service of Cheap 4x8 CNC Machine

  • Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
  • Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
  • Inquiries and consulting services for all 4×8 CNC router table cheap.

After-Sale Service of 4x8 CNC Router for sale

  • The warranty period is 2 years for the 4×8 CNC cheap cutting machine.
  • When you need to replace the wearing parts of cheap 4×8 router, we will provide them at the agent price.
  • If there are any problems during the warranty period, we will replace the main parts free of charge.
  • The CNC router table 4×8 for sale software provides free lifetime update service.
  • 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
  • We provide English training videos and user manuals for 4×8 CNC router machine sale installation and operation, etc. We can also provide technical guidance remotely.
  • Free training at the BuyCNC factory.
  • The engineer can repair the 4×8 plywood CNC table machine overseas.
ABS-1325 CNC Router After-Sales-Support
ABS-1325 CNC Router Support shipment Delivery

Delivery for Cheap CNC Table router

All of the cheap CNC plywood router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!

About BuyCNC

BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser  engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.

The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.

 You can get the 4×8 CNC router wood directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an cheap CNC router from BuyCNC.
