CNC wood cutting router for Sale

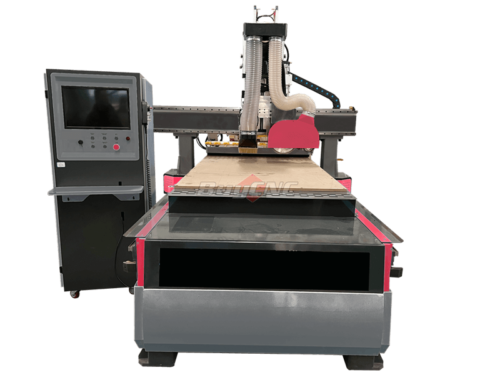

Do you want to simplify the production process of your factory and improve the processing efficiency of your own factory, then take a look at this ATC CNC wood cutting router machine. It takes CNC machining to a new level. The floor space of this CNC wood saw cutter It has a small area and is easy to assemble and can be put into production quickly. And the CNC wood cutter machine is equipped with 9kw air-cooled spindle and cutting saw as standard, so the machining capacity of this machine is very strong. The control system of this CNC router cutting wood is Syntec bus absolute value control system, which is very professional and can perfectly realize the processing of various materials. If you want to know more about this CNC wood saw cutter machine, then please leave us a message.
CNC wood saw Machine Video
Feature of wood cutting router
Application In Widely Industries For CNC wood cutter machine
|CNC Wood Saw Application Industry||Furniture Industry|
|Musical Instrument Industry|
|Gift Customization Industry|
|Art Model Industry|
|Material that can be cut by CNC Wood Saw||Wood||MDF|
|Composite Board||Melamine Board|
CNC wood saw router Technical Parameters
|Description||CNC Wood Saw Cutter Parameters|
|Spindle Power||9kw ATC air cooling spindle|
|Table Surface||Double layer Vacuum table|
|X, Y Structure||Gear and rack Transmission|
|Z Structure||Taiwan TBI Ball Screw|
|Max. Rapid Travel Rate||80m/min|
|Max. Working Speed||40m/min|
|Drive Motors||Syntec servo motor and driver|
|Working Voltage||AC380V/3PH/50Hz (option:220V or custom made)|
|Command Language||G Code|
|Operating System||Taiwan Syntec Bus communication|
|Drill Bang||FAM 5+4 Vertical (for option)|
|Software||AlphaCAM/Cabinet Version/Vectric Aspire, etc.|
|Running Environment||Temperature: 0℃~45℃ Relative Humidity: 30%~75%|
Main Parts of wood cutting router
12-position Tool Rack
This is the 12-position Tool Rack, the CNC wood saw machine 标配a 12-position tool rack. The tool rack moves together with the machine gantry, which will save the tool change time. When changing the tool, the cylinder will punch the tool rack out and then change the tool. After the tool change is finished, the tool rack go back, and then the spindle start to work.
9KW High-Frequency Automatic Tool Changer Spindle
This is 9KW High-Frequency Automatic Tool Changer Spindle, this CNC wood cutter machine comes standard with 9kw air-cooled automatic tool changer spindle. This spindle is highly accurate, efficient, requires no downtime for maintenance, and features industry-standard ER collets and ISO 30 toolholders. Fully programmable speeds from 6000 to 24000 RPM with pneumatic retractable vacuum hood
This is the cuttings saw, There are double-cutting saws on the machine, the bigger one and the smaller one. The double saw design can effectively avoid edge chipping.
Syntec Bus Communication Controller
This is the Syntec Bus Communication Controller. It can link multiple servos, which can shorten the processing cycle. This controller can handle a larger amount of information, and the full digital information exchange can transmit multiple parameters, instructions, and status data in both directions; Syntec 6MA pulse mode can only transmit position or speed information in one direction, and cannot obtain more status of the servo or parameters. This controller adopts high-precision, digital communication mode: there is no signal drift problem, and the precision of instruction and feedback data is as high as 32 bits. And it has higher reliability, stronger anti-interference ability, and no pulse loss phenomenon.
Syntec Absolute Value Servo Motor
This is the Syntec Absolute Value Servo Motor, The absolute value servo motor does not need to return to the origin when the machine is turned on. Compared with the traditional servo motor, the absolute value servo motor has higher precision and higher efficiency.
Shimpo gear reducer
Drive Train Assembly
Finished material pushing system&Vacuum brush
Optional Parts of CNC computer wood cutting machine
Italy FAM Drilling Head
Automatic loading&Unloading system
Projects of CNC wood cutter machine
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for CNC router cutting wood machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the wood cutting router machine.
Packing for CNC wood Saw cutter
- Step 1: PVC film packing, which can ensure that the wood cutter router is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of computer wood cutting machine
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all CNC wood cutter machine.
After-Sale Service of CNC router cutting wood
- The warranty period is 2 years for the CNC wood saw router.
- When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The wood cutting router software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for computer wood cutting machine installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the CNC wood saw router overseas.
Delivery for CNC wood saw machine
All of the wood CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
