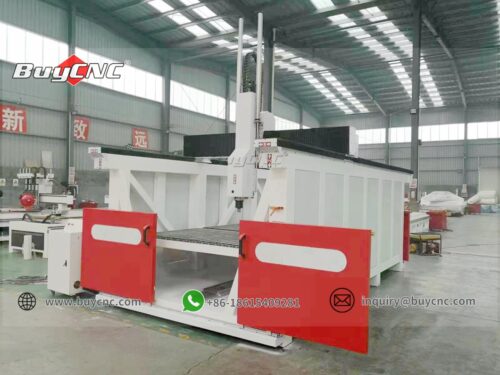

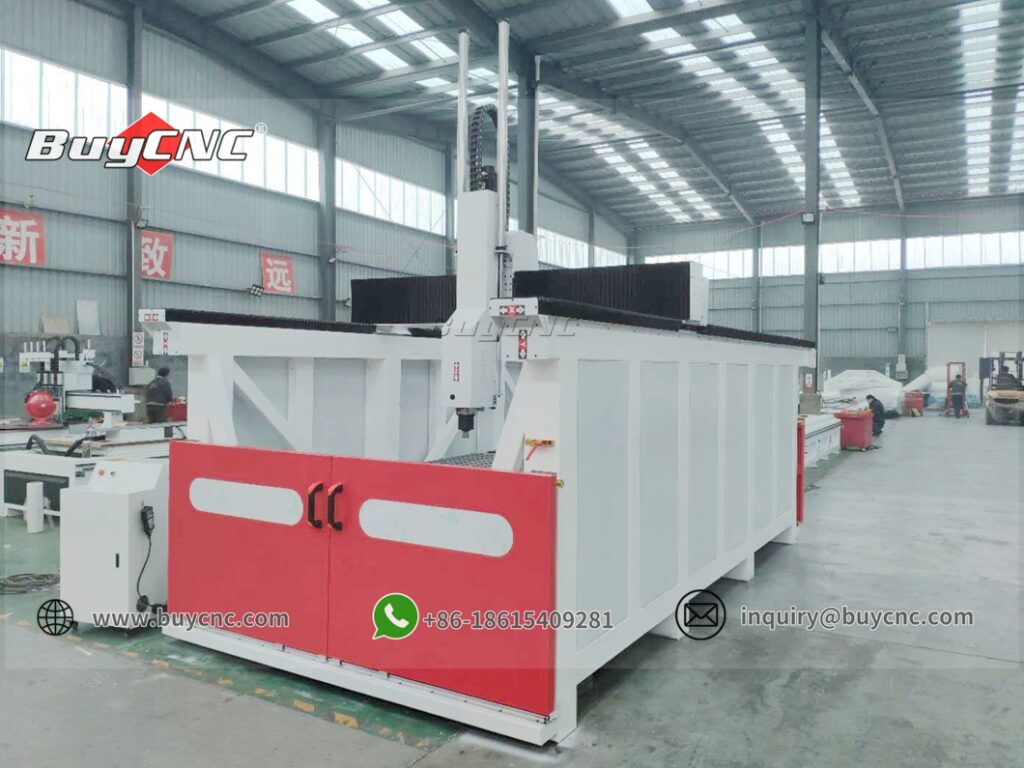

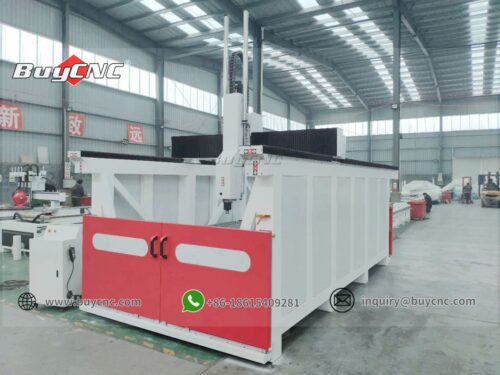

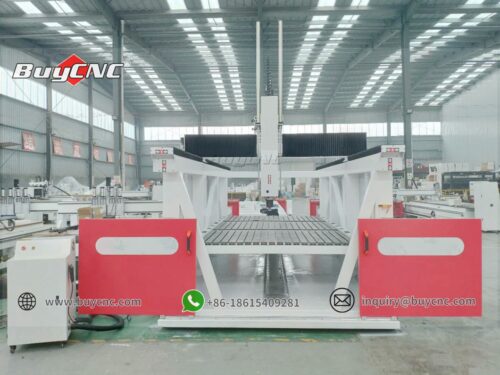

4 Axis 3D 2D CNC Foam Router Foam Cutting CNC Router for Big Foam Portrait Sculpture with Rotary Axis 1800mm High Z axis

This is a professional big 4 axis CNC foam router machine, this cnc router foam cutter can process 3D and 2D products, because this machine has Rotary Axis 1800mm High Z axis. Now this foam cutting cnc router is suitable for engraving, film and television wedding stage Foam products such as props, decorative display, EPS components, foam portrait carvings, etc. If you are interested, welcome to leave a message for consultation.

Model                          ABR-2030-R900

Rating                         ♥ ♥ ♥ ♥ ♥   4.9/5 based on 21 ratings and reviews

Applicable industries of cnc foam router:

cnc router foam cutter

CNC foam router is suitable for sculpture, film and television wedding stage props, decorative display, EPS components, foam portrait carving, and other foam products.

We accept customized CNC router foam cutter size and configuration

If you have any needs, please contact:

[email protected]

Whatsapp: +8618615409281

Functional characteristics of CNC router foam cutter:

◆Advanced five-axis, four-axis and three-axis CNC systems can be selected according to production requirements, with high machining accuracy and high speed.

◆Import widened linear guide rail. When CNC router foam cutter is engraved, the force in all directions is equal, which ensures the accuracy and strength of CNC foam router.

CNC Foam router processing size can be customized according to production needs, Z-axis stroke can be increased to 2000mm, three-dimensional rotation diameter can reach 1800mm. foam cutting CNC router processing format is large, suitable for processing large ultra-thick materials.

◆Intelligent processing out-of-boundary protection function can prevent mechanical collision caused by excessive design file processing.

◆Diversified control can separately control the processing speed, idling speed, and knife drop speed, which greatly improves the quality and processing efficiency of CNC router foam cutter  processed products.

If you have any needs, please contact:

[email protected]

Whatsapp: +861861540928

Parameter of foam cutting CNC router:

Model ABR-2030
Working stroke 2000mm*3000mm
Rotary shaft clamping diameter 1800mm
Feeding height 2200mm
Empty speed 40M/min
Working speed 20M/min
Bed square tube welding, vibration failure treatment Platform: Aluminum profile table top
Platform Aluminum profile table top
Longmen Thickened and tempered, not easy to deform

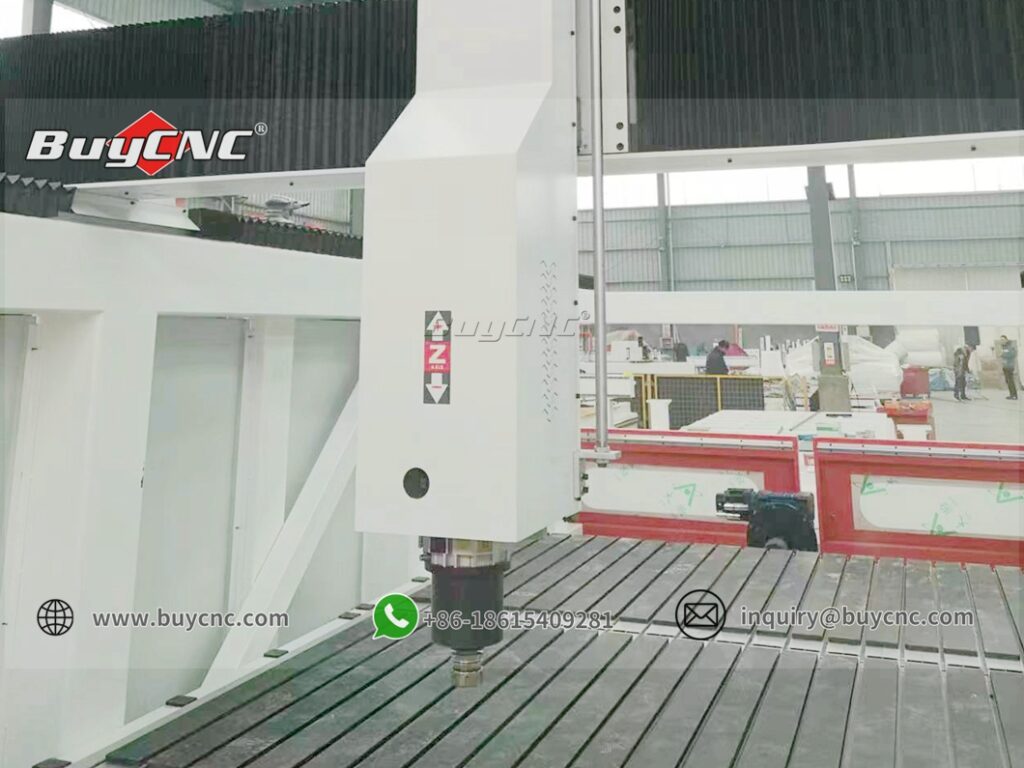

Spindle 7.5kw air-cooled
Machine head upside down, equipped with auxiliary cylinder
Spindle speed 0-18000r/min
Drive motor servo
Reducer planetary high-secret reducer
Rail 30mm
Rack 7-stage high-precision helical rack
Inverter Best, Fuling, Delta
Control system Xindai, Weihong, Shanlong
Screw rod TBI Taiwan
Lubrication device automatic lubrication
Programming software Wentai, Jingdiao, Rhinoceros, soildworks, powermill, artcam, Mastercam, 3Dmax, etc
Cabinet split
Working voltage 380V three-phase
Running Environment Temperature: 0℃~45℃ Relative Humidity: 30%~75%

Working Sample of CNC foam router:

If you have any needs about CNC foam router

please contact:

[email protected]

Whatsapp: +8618615409281
