Digital Tool CNC Router With Camera CCD System Oscillating Cutter

$9,800.00

This is a digital CNC router with oscillating cutter and CNC router camera,This CNC router machine is an innovative hybrid CNC production system combining heavy-duty routing with fast knife cutting.It means it can use multiple tools to process almost all materials.Such as the wood,foam,metal etc.However this digital cutting machine price is affordable,if you want to know more,pleae contact us.

Model                          ARK-1325-CCD-PZ

Rating                         ♥ ♥ ♥ ♥ ♥   4.8/5 based on 50 ratings and reviews

Spindle                         3.2kw MTC Spindle

Digital Tool CNC Router for Sale

This is a brand new hybrid CNC router machine,this digital cutting machine come standard with oscillating cutter and CNC router camera and the CCD System.This machine combine heavy-duty milling with fast knife cutting,so it can process the broadest range of materials in all print finishing, sign making, foam and graphics applications.Such as mill aluminum and acrylic,It also can cut or trimme paper,vinyl,foam board,coroplast,styrene and rubber,etc.

The popular applications:

1.Graphics and Print Finishing-Cut-to-print using multiple tools for all materials.

2.Sign making-All types of 2D and 3D signs in woods, metals and plastics.

3.Foam Packaging-2D and 3D processing with router and knife tool.

If you are interested in this digital tools CNC router machine, please leave your email address or number, we will contact you ASAP!!!

Digital Cutting Machine Video

Feature of digital tool CNC router

The Electric oscillating Cutter device

This digital tool CNC router machine come standard with the oscillating cutter device,it is mainly used incutting various materials such as thecardboard,foil,sealing materials carbon fiber prepreg materialm,leather,rigid foam and many others.The powerful oscillation motor moves the blade quickly up and down while an actuator rotates the blade in each direction of cutting. Thus, even strong thick materials con be cut precisely and quickly.

CCD System of Digital cutting machine Price

The CCD system is a famous monitoring system, it is mainly used modular optical recognition system for the multi-functional flatbed machines and industrial usage in exact-outline digital finishing processes.

Widely Application material and Industry

Using our knife cutting systems of this digital tool CNC router machine you can process a wide range of materials including, but not limited to:Carpet,Felt,Foam,Closed Cell Foam,Fiberglass Insulation,Composites,Gasket Materials, Rubber,Fabric,Honeycomb,Cardboard,Single-ply Cloth/Fabric,Corrugated Cardboard/Paperboard,Snowboard,Corrugated Plastic,Leather Goods,wood veneer for inlay/marquetry artwork,Carbon fiber pre-preg ,laminates for aerospace, military, and automotive components,Vinyl and so on…

Application In Widely Industries For CNC router sign making Machine

Navigation Bar
Digital Cutting Machine Application Industry Print Finishing Industry
Sign Making Industry
Decoration Industry
Foam Industry
Model Industry
Craft Industry
Other
Material that can be cut by Oscillating Cutter Carpet Foam
Rubber Fabric
Composite Board Leather
Acrylic Other

CNC oscillating cutter Machine Technical Parameters

Navigation Bar
DescriptionsDigital Cutting Machine Parameters
ModelARK-1325-CCD-PZ
Working Area1300*2500*200mm
Machine FrameThick Steel
Spindle Power3.2kw MTC Spindle
Accuracy±0.01/2000mm
Table SurfaceVacuum and T-slot
X,Y,Z Rail and TransmissionX Y axis helical gear transmission,
Z axis Taiwan TBI Ball Screw
Max. Rapid Travel Rate25m/min
Max. Working Speed15m/min
Spindle Speed0-24000RPM
Drive MotorsHybrid servo motor and driver
Working VoltageAC380V/3PH/50Hz
(option:220V)
Command LanguageG Code
Operating SystemAlpha
InterfaceUSB
Software capabilitiesOption: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.
Running EnvironmentTemperature: 0℃~45℃
Relative Humidity: 30%~75%

Main Parts of CNC digital cutting machine price

Navigation Bar
3.2KW High Frequency MTC Spindle

3.2KW MTC Spindle

The Alpha MTC CNC Router machine come standard with the 3.2kw high frequency MTC spindle. This spindle has a high precision and use the industry standard ER collets. Meanwhile it comes complete with pneumatically retractable vacuum hood. So this MTC Spindle has stable operation and malfunction Low incidence rate, less maintenance time and many other advantages. And the Fully programmable speeds is from 6000 to 24000 RPM.

Electric oscillating cutter device

This digital tool CNC router machine come standard with the oscillating cutter device,it is mainly used incutting various materials such as thecardboard,foil,sealing materials carbon fiber prepreg materialm,leather,rigid foam and many others.The powerful oscillation motor moves the blade quickly up and down while an actuator rotates the blade in each direction of cutting. Thus, even strong thick materials con be cut precisely and quickly.

Electric oscillating device

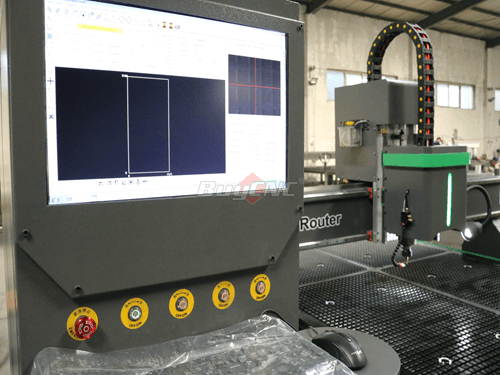

CCD Vision system

CCD Vision system

The CCD System is a famous vision system,it has a CNC router camera.The CCD Vision system is mainly used modular optical recognition system for multi-functional flatbed machine.And it also can be used for industrial usage in exact-outline digital finishing processes.

Machine Frame

The base frame of our digital tool CNC router machine is fabricated from heavy-duty tubular steel, after the steel be welding is completed, we have carried out fine processing and stress relief steps on the base frame.So our base frame is stable and strong and it makes our machine have a longer service life.

Base Frame
Hybrid Vacuum and T-slot table

Vacuum and T-slot Work table

This CNC router sign making machine has a 1 inch thick phenolic vacuum table surface,which is mounted onto the steel base frame.This vacuum work table is very stable.In order to help user to process different size materials more easily,this work table has multi-zoned.And you can turn on or turn off the zone easily by the vacuum controller in front of the machine.However if you don’t like the vacuum table, you also can fix the material through the T-Slot.

Height Adjustment Foot

This is a Height adjustment foot,Its main function is to be able to make good connections together between the various components of equipment, in order to maintain the machinery and equipment to maintain the level of state, can also avoid the machine will appear to tilt or move back and forth in the run time.


Height adjustment foot
Vazzcuum zone control switch

Vazzcuum zone control switch

High precision TBI Ballscrew on Z axis

High precision TBI Ballscrew on Z axis

Rotary Vane Vacuum Pump

Rotary Vane Vacuum Pump

Optional Parts of Digital tool CNC Router for Sign making

Navigation Bar
Dust collector

Dust collector

Oil mist Coolant System

Oil mist Coolant System

Projects of CNC signs Router with CCD System

Navigation Bar
Digital cutter sample

Strong Factory Strength

Navigation Bar
CNC Machining
Buycnc Machine Assembly Plant

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC digital cutting machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.

High Precision Installation for Digital Tool CNC Router with oscillating cutter

Navigation Bar
ABS-1325-CNC-Router-high-precision-installation

During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the CNC router oscillating cutter machine.

Our Service

Navigation Bar

Packing for CNC Digital Cutting Machine

  • Step 1: PVC film packing, which can ensure that the CNC router sign making machine is completely covered, avoiding water and rust.
  • Step 2: Wooden box packing, with a fixed template on the outermost layer.
  • Step 3: All of the packing are inspected carefully by QC before delivery.
ABS-1325 CNC Router plywood case packing
ABS-1325 CNC Router Pro-Sale Service

Pro-Sale Service of CNC router with oscillating cutter

  • Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
  • Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
  • Inquiries and consulting services for all digital Cutting machine price with CCD System.

After-Sale Service of acrylic cutting machine

  • The warranty period is 2 years for the digital tool CNC router machine.
  • When you need to replace the wearing parts of cheap digital cutting machine, we will provide them at the agent price.
  • If there are any problems during the warranty period, we will replace the main parts free of charge.
  • The digital cutting machine software provides free lifetime update service.
  • 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
  • We provide English training videos and user manuals for acrylic CNC machine installation and operation, etc. We can also provide technical guidance remotely.
  • Free training at the BuyCNC factory.
  • The engineer can repair the oscillating cutter machine overseas.
ABS-1325 CNC Router After-Sales-Support
ABS-1325 CNC Router Support shipment Delivery

Delivery for CNC digital Cutting Machine

All of the CNC sign Making machine can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
