CNC Wood Furniture Cabinet Door Hinge Boring Machine 3D Furniture Leg Making Machine for Sale

$20,000.00

This CNC wood router for sale is a multifunctional machine,this machine contains ATC Function.So it can be used in making cabinet furniture.The wood door making CNC router machine also come standard with horizontal spindle and rotary spindle.The horizontal spindle can be used for drilling and milling the keyhole and hinge for door making. The rotary axis can be used for making furniture legs, such as chair legs, table legs, sofa legs, and many other three-dimensional products.If you like this multifunctional machine,just contact BuyCNC.

Model                          APS-1325-R-H

Rating                         ♥ ♥ ♥ ♥ ♥   4.8/5 based on 10 ratings and reviews

Spindle                        Vertical Spindle 9KW ATC Tool Change/Horizontal Spindle 3.5KW MTC Spindle

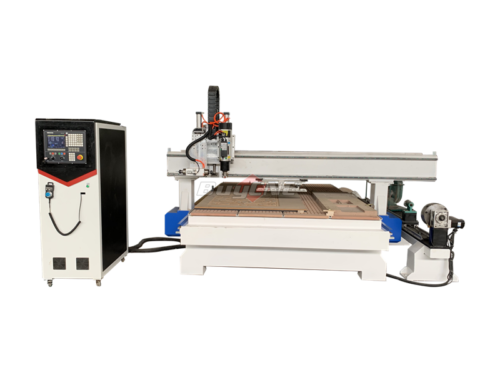

CNC Wood Furniture Router for Sale

  This CNC wood furniture machine is a multifunctional CNC wood router machine that can process a variety of products. It not only supports automatic tool change, but also installs two machining axes, namely horizontal spindle and rotary axis. So this machine It has high work efficiency and is widely used in the cabinet furniture industry. And the horizontal spindle can be used to drill and milling the keyhole and hinge for door making. The rotary axis can be used to make furniture legs, such as chair legs, table legs, sofa legs and many other three-dimensional sculpture projects.

  You can use this wood door making cnc router machine for engraving, lettering, hollowing, cutting, milling, shaping and other processes. If you want to know more about this machine, please contact BuyCNC.

CNC Wood Furniture Router Video

Feature of cnc wood furniture Router

This CNC wood door making router is a multifunctional CNC Machine

The biggest feature of this machine is that it has three functions. The first is the automatic tool change function, which can increase the processing speed. The second is that it is installed with a horizontal spindle, which can be used for drilling and milling the keyhole and hinge for door Making. The third is that it comes with a rotating shaft, which can produce cylindrical 3D products such as furniture legs. This machine can meet all the needs of the furniture manufacturing industry.

Vacuum&T-slot Work Table of CNC wood Furniture Machine

This wood door making CNC router machine come standard with the vacuum& T-slot work table. You can use vacuum suction to fix the material, or use T-slot to fix the material. We have equipped this machine with a high-quality vacuum pump, which can Absorb the material in a few seconds.

Best Servo Motor of the door hinge making machine

This CNC wood furniture making machine is equipped with high-quality servo motor driver.This servo motor has high precision, it can realize the closed-loop control of position, speed and torque; overcomes the problem of stepping motor out-of-step. This servo motor has good high-speed performance,the generally rated speed can reach 2000-3000rpm.The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.This motor can run smoothly at low speed, and it will not produce stepping operation phenomenon similar to stepping motor when running at low speed. Suitable for occasions with high-speed response requirement. And this servo motor will not generate a lot of noise and heat.

Application In Widely Industries For Affordable CNC Wood Router

Navigation Bar
CNC Furniture Router Application IndustryAdvertising Industry
Furniture Industry
Decoration Industry
Woodworking Industry
Mold Industry
Exhibition Industry
Other
Material that can be cut by CNC wood routerWoodMDF
PlywoodCarbon Fiber
Composite BoardMelamine Board
AcrylicOther

CNC Wood Router for sale Technical Parameters

Navigation Bar
DescriptionsCNC Furniture Router Parameters
ModelAPS-1325-R-H
Working Area1300*2500*300mm
Machine Frameheavy-duty tubular steel
Spindle Power9KW ATC spindle,0-24000RPM,
ER32 collet
Horizontal Spindle3.5KW MTC spindle, 0-18000RPM
Accuracy±0.01/2000mm
Table SurfaceVacuum and T-slot
X,Y,Z Rail and TransmissionX Y axis helical gear transmission,
Z axis Taiwan TBI Ball Screw
Max. Rapid Travel Rate60m/min
Max. Working Speed40m/min
Rotary axis200mm diameter, 2000mm length
Drive MotorsServo motor and driver 1kw
Working VoltageAC380V/3PH/50Hz
Command LanguageG Code
Operating SystemNc-studio(Weihong)
InterfaceUSB
Software capabilitiesOption: Vectric Aspire, Type3, Ucancam,
Artcam, Solidworks, etc.
Running EnvironmentTemperature: 0℃~45℃
Relative Humidity: 30%~75%

Main Parts of wood door making CNC router machine

Navigation Bar
Vertical Spindle 9KW ATC Tool Change

Vertical Spindle 9KW ATC Tool Change

This is a Vertical Spindle 9KW ATC Tool Change, as a high frequency automatic tool changer spindle, we equipped it with an 8-position Tool Rack. And this precision spindle has high cutting precision and a long service life. Fully programmable speeds from 6000 to 24000 RPM.

Horizontal Spindle 3.5KW MTC Spindle

This is the Horizontal Spindle 3.5KW MTC Spindle, it is mainly used to process door lock holes and hinges. Meanwhile, it is also an automatic tool change spindle, it does not require maintenance and the fully programmable speeds from 6000 to 18000 RPM.

Horizontal Spindle 3.5KW MTC Spindle
Rotary Axis

Rotary Axis

BuyCNC’s 4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment. The addition of Alpha’s 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

(BuyCNC has 0-100mm, 0-150mm, 0-200mm, 0-250mm, 0-300mm diameter rotary axis for your choice)

Nc-studio(Weihong) industrial CNC controller

This is the NC-studio industrial CNC router controller, it is one of the most popular controllers in the CNC router machine industry because of its high safety and easy learning. The simple and intuitive high-definition screen can make the operator more convenient to control the machine, so it has been widely used in wood processing industry, furniture manufacturing industry, decoration industry, etc. It supports lookahead function and 3D processing function.

Nc-studio(Weihong) industrial AC servo CNC controller
8-position Tool Rack

8-position Tool Rack

Vacuum & T-slot table

Vacuum & T-slot table

Welded Steel Base Frame

Welded Steel Base Frame

Shimpo gear reducer

Shimpo gear reducer

XYZ Axis Taiwan Hiwin Square Rail

Hiwin square rail on XYZ axis

XY Helical rack and pinion

XY Helical rack and pinion

Vacuum pump

Vacuum Pump

NEW — CNC Machine Tool Holder Clamp

Add Your Heading Text Here

CNC Tool Calibration

CNC Tool Calibration

Optional Parts of CNC wood furniture Machine

Navigation Bar
Oil mist Coolant System

Oil mist Coolant System

Dust collector

Dust collector

Projects of cabinet door machine for sale

Navigation Bar
cnc wood furniture router sample
woodworking CNC sample2
woodworking CNC sample3

Strong Factory Strength

Navigation Bar
CNC Machining
Buycnc Machine Assembly Plant

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.

High Precision Installation for cabinet door hinge boring machine

Navigation Bar
ABS-1325-CNC-Router-high-precision-installation

During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the CNC door hinge making machine.

Our Service

Navigation Bar

Packing for CNC wood furniture Making Machine

  • Step 1: PVC film packing, which can ensure that the CNC wood router for sale is completely covered, avoiding water and rust.
  • Step 2: Wooden box packing, with a fixed template on the outermost layer.
  • Step 3: All of the packing are inspected carefully by QC before delivery.
ABS-1325 CNC Router plywood case packing
ABS-1325 CNC Router Pro-Sale Service

Pro-Sale Service of cabinet door machine for sale

  • Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
  • Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
  • Inquiries and consulting services for all cabinet door hinge boring machine.

After-Sale Service of 4x8 CNC Router for sale

  • The warranty period is 2 years for the CNC door hinge making machine.
  • When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
  • If there are any problems during the warranty period, we will replace the main parts free of charge.
  • The wood door making CNC router machine software provides free lifetime update service.
  • 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
  • We provide English training videos and user manuals for CNC wood furniture machine installation and operation, etc. We can also provide technical guidance remotely.
  • Free training at the BuyCNC factory.
  • The engineer can repair the CNC wood door making machine overseas.
ABS-1325 CNC Router After-Sales-Support
ABS-1325 CNC Router Support shipment Delivery

Delivery for CNC cabinet door machine

All of the cheap CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!

About BuyCNC

BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser  engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.

The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.

 You can get the CNC wood router for sale directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an cheap CNC router from BuyCNC.
