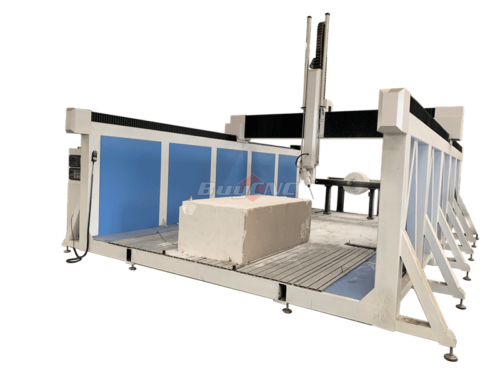

cNC router foam cutting Machine for Sale
This is the professional CNC router foam cutting machine,This machine is a five axis four linkage machine. The spindle can rotate ±90°, and the rotary axis attachment can be 360° rotating. The CNC router 3d models machine is controlled by taiwan LNC Controller,which has big screen to control the CNC router machine.
So this 3d CNC router milling machine can realize embossing, lettering, hollowing, cutting, vertical carving, round carving, etc,it also can be seamlessly spliced, suitable for various shapes.And this machine has widely used in foam molds, wooden sculptures, aerospace models, disappearing casting foam molds, large sculptures, wedding decorations, external wall dry hanging, garden engineering, large sculptures, handicrafts and other industries.
CNC router foam cutting machine Video
Feature of CNC router foam cutting machine
Application In Widely Industries For CNC Router foam cutting Machine
|CNC Router foam cutter Application Industry||Foam Mold Industry|
|3D Models Industry|
|Gift Customization Industry|
|Art Model Industry|
|Material that can be cut by foam CNC router||Wood||MDF|
CNC Router Foam Cutting machine Technical Parameters
|Descriptions||CNC Router Foam Cutter Parameters|
|Spindle Power||6.5kw MTC spindle|
|Spindle Rotating Degree||±90°|
|Rotary Axis Diameter||1200mm|
|Rotary Axis Rotating Degree||±360°|
|Table Surface||Vacuum and T-slot|
|X,Y,Z Rail and Transmission||X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw|
|Max. Rapid Travel Rate||60m/min|
|Max. Working Speed||40m/min|
|Drive Motors||Servo motor and driver 1.5kw|
|Command Language||G Code|
|Operating System||Taiwan LNC|
|Software capabilities||Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.|
|Running Environment||Temperature: 0℃~45℃ Relative Humidity: 30%~75%|
Main Parts of Cheap CNC Router 3D Models machine
6.5KW Manual Tool Change Spindle
The CNC Router foam cutting machine comes standard with a 6.5kw high frequency maunal tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER 32 collets. Fully programmable speeds from 6000 to 24000 RPM.And The spindle can be rotated on right and left ±90°.
4th Rotary Axis
The CNC Router 3d models machine comes with a 4th rotary axis, and the rotary axis can rotate 360 degrees, which is very suitable for processing cylindrical 3D three-dimensional workpieces. The diameter of the rotary axis is available from 200-1500mm.The rotary axis can move along the square rail and can engrave workpieces of any length.
Taiwan LNC Controller with big screen
The control system of this CNC router foam machine is the taiwan lnc Controller.It has big screen,we can use the keyboard and mouse to operate it.The controller has LNC control system 5 axis 4 linkage,and it supports all kinds of pulse type drivers.Meanwhile,it has high precision ,fast response speed and it supports U disk.
1.5KW Servo Motors
This is the 1.5kw servo motor,which is powerful enough for the machine high speed moving. It has many advantages,High Precision: The servo motor realizes the closed-loop control of position, speed and torque,it overcomes the problem of stepping motor out-of-step;High Speed: good high-speed performance, generally rated speed can reach 2000-3000 rpm;Adaptability: strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requirements for fast starting;Stability: It runs smoothly at low speed, and it will not produce stepping operation phenomenon similar to stepping motor when running at low speed. Suitable for occasions with high-speed response requirements;Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds;Low noise: Heat and noise are significantly reduced.
Welded Steel Base Frame
Shimpo gear reducer
Taiwan Hiwin Square Rail
Optional Parts of 3D CNC router milling machine
Oil mist Coolant System
9KW High Frequency Automatic Tool Changer Spindle
Projects of state of the art CNC router
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for CNC router 3d models machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the 3d CNC router milling machine.
Packing for CNC Router foam machine
- Step 1: PVC film packing, which can ensure that the CNC foam router is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of CNC Router Foam cutting machine
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all state of the art CNC router.
After-Sale Service of state of the art cNC router
- The warranty period is 2 years for the 3d CNC router milling machine.
- When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The CNC router foam cutter for sale software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for foam CNC router machine sale installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the CNC router foam cutting machine overseas.
Delivery for CNC Router foam cutter
All of the foam CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.
The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.
You can get the 3d foam CNC router wood directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an cheap CNC router from BuyCNC.
