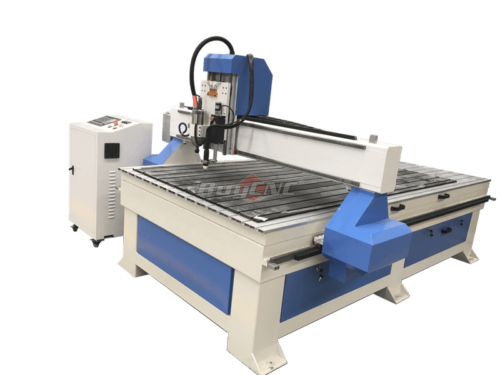

CNC Router Plasma Cutter All in One Machine


This is a multifuncitonal plasma router machine and this machine combined CNC Router and CNC Plasma Cutting Machine function.So as the CNC router and plasma cutter, it can replace CNC router machine and CNC laser cutting machine.The cnc router plasma table machine is a good choice for customers who do not have enough space to place two independent machines, but want to have both the engraving function and the plasma cutting function.If you like the CNC plasma and router table, please contact me.

Model                          APM-ABS-1325

Rating                         ♥ ♥ ♥ ♥ ♥   5/5 based on 8 ratings and reviews

Plasma Source           Chinese Huayuan/American Hypetherm

CNC plasma and router table for Sale

  Come and take a look at this multifunctional CNC plasma and router table cutter machine.BuyCNC recently launched this advanced CNC plasma table with router attachment machine.It combined CNC Router and CNC Plasma Cutting Machine function.This CNC router plasma table come standard with the 3kw water cooling spindle. If your budget is not enough or the space is not enough to buy CNC router machine and CNC plasma table cutter, then this machine is your best choice.

CNC plasma router Video

Feature of Cheap CNC Plasma Router Cutter

Multifunctionnal CNC router and plasma cutter

The biggest feature of this machine is it is a multifunctional machine.As the router and plasma cutter, it can realize the function of CNC router, and it can also realize the function of CNC plasma cutter. So this is a multifunctional cutting machine.

double layer removable table of CNC plasma router

The CNC plasma and router table machine is with double layer removable table. The fist layer is aluminum T slot table for CNC Router, and the second layer is the sawtooth shape table for plasma cutting, which can avoid the plasma damage table, and make the table working life longer.

3kw water cooling spindle and plasma cutting head

Because this machine is a multifunctional CNC plasma and router table machine.So it has two cut tools. The first is high precision plasma cutting head, and the other is 3kw water cooling spindle for the CNC router machine. Both tools can be implemented High-quality cutting.

Application In Widely Industries For CNC router plasma Machine

Navigation Bar
Plasma Router Application IndustryMetal Industry
Craft Industry
Decoration Industry
Car Industry
Gift Customization Industry
Art Model Industry
Material that can be cut by Plasma RouterSteelAluminum
Stainless SteelCopper

CNC Plasma Router Technical Parameters

Navigation Bar
Descriptions CNC Plasma Router Parameters
Model APM-ABS-1325
Working Area 1,300×2,500mm
Source Power American Hypetherm/Chinese Huayuan
Cutting thickness 0.3-30mm
Control system Starfire with THC
Nesting Software Fastcam
Auto torch height controller Yes
Drive Motors Stepper motor
Design Software Auto Cad/CAXA or others
XYZ Transmission type X,Y rack gear, Z axis ballscrew
Table of CNC Plasma Steel Sawthooth table
Table of CNC Router Aluminum T-slot
Plasma Working Mode Untouched Arc Striking
Cutting Speed 0-15m/min
Running Speed 0-20m/min
Working Voltage AC380V/3PH/50Hz
Repeat positioning accuracy ±0.05mm
Process precision ±0.35mm
File transfer mode USB interface
packing size 2200*3800*1800mm
Gross weight 1,300kgs
Optional Parts Rotary axis device

Main Parts of Cheap CNC Router Plasma Cutter

Navigation Bar
STARFIRE Control system

STARFIRE Control system

This is the starfire control system,this controller has highly reliable design and it has the ability to resist plasma interference, lightning strikes, and surges.This controller has practical flame/plasma cutting process, during plasma processing, the corner speed control and height controller control are automatically completed; remote operation can be achieved with a wireless remote control.It has the function of slitting compensation, and detects whether the compensation in the program is reasonable, and makes a corresponding report for the user to choose.Meanwhile this controller Part library with 24 types of graphics (expandable), including commonly used basic processing parts.Fully compatible with StarCAM nesting software, and compatible with mainstream nesting software such as IBE (Germany) and FASTCAM.And Multi-language operation interface conversion, dynamic graphic display, 1 to 8 times graphic magnification, automatic tracking of moving points, using U disk to read programs and timely software upgrades.

Automatic torch height controller(THC)

The arc voltage height adjustment controller detects the change of the arc voltage value when the plasma power supply is working, and controls the lifting of the height adjustment motor, so that the cutting torch adjusts the height according to the fluctuation of the steel plate to ensure that the distance between the cutting nozzle and the steel plate is kept at a relatively high level. Within the ideal range.

When cutting, the height of the cutting torch is automatically adjusted according to the change of the arc voltage, which can effectively solve the height drop problem caused by the irregularity and deformation of the plate surface, so that the cutting slit width is consistent and the cutting quality is stable.

Automatic torch height controller((THC)
DSP Hand-held controller

DSP hand-held Controller

The Controller of the CNC router machine is the DSP hand-held controller.The DSP computing core has fast computing speed and strong processing ability.It has 16-button handheld operation and it is easy to train and operate.It has Built-in screen display to realize full offline operation and Built-in storage space and it supports U disk reading.It can realize 8 pairs of I/O ports can be customized and it supports G code, PLT, DXF format files generated by various CAD/CAM software.This controller has Multi-coordinate system memory function and it supports 9 workpiece coordinate systems.It also has many functions,such as,the intelligent pre-reading of files improves processing efficiency.the intelligent memory supports continuous processing of breakpoints, power failures, and interrupted tools.Parameter backup and recovery function and Two operation modes to ensure quality and can support remote maintenance and system upgrade.And this controller support multilingual display, can be switched freely.

Chinese Huayuan Power Source

This is the Chinese Huayuan power source,it has high load duration and capable of adapting to wide power grid voltage,so it is very suitable for heavy industry.The huayuan power source has Scientific dust-proof design, high reliability of the whole machine.Meanwhile it has compact structure, small size, light weight, can be installed on CNC machine tools.The cutting air source uses cheap compressed air, and the cutting cost is low.And this power source has many advanced function,such as the plasma gas pressure detection and indication function,gas test function, easy to adjust the air pressure and automatic protection function for overheating, overvoltage, undervoltage, and lack of phase.

Chinese Huayuan power source
Heavy Duty Machine bed

Heavy Duty Machine bed

FASTCAM Nesting software

FASTCAM Nesting software

High precision cutting head

High precision cutting head

Optional Parts of CNC router plasma Machine

Navigation Bar
Rotary axis attachment

Rotary axis attachment

Flame cutting function

Flame cutting function

Drilling Head

Drilling Head

Projects of CNC router and plasma cutter

Navigation Bar
Protable CNC plasma sample
Protable CNC plasma sample1

Strong Factory Strength

Navigation Bar
CNC Machining
Buycnc Machine Assembly Plant

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.

High Precision Installation for CNC router and plasma cutter

Navigation Bar

During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the CNC router plasma table machine.

Our Service

Navigation Bar

Packing for plasma router Cutter

  • Step 1: PVC film packing, which can ensure that the CNC plasma router cutter is completely covered, avoiding water and rust.
  • Step 2: Wooden box packing, with a fixed template on the outermost layer.
  • Step 3: All of the packing are inspected carefully by QC before delivery.
ABS-1325 CNC Router plywood case packing
ABS-1325 CNC Router Pro-Sale Service

Pro-Sale Service of CNC router plasma

  • Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
  • Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
  • Inquiries and consulting services for all CNC plasma and router table.

After-Sale Service of Plasma Router for sale

  • The warranty period is 2 years for the CNC router machine.
  • When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
  • If there are any problems during the warranty period, we will replace the main parts free of charge.
  • The CNC router plasma table software provides free lifetime update service.
  • 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
  • We provide English training videos and user manuals for CNC machine installation and operation, etc. We can also provide technical guidance remotely.
  • Free training at the BuyCNC factory.
  • The engineer can repair the CNC router plasma overseas.
ABS-1325 CNC Router After-Sales-Support
ABS-1325 CNC Router Support shipment Delivery

Delivery for CNC Router Plasma Cutter

All of the cheap CNC machine can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
