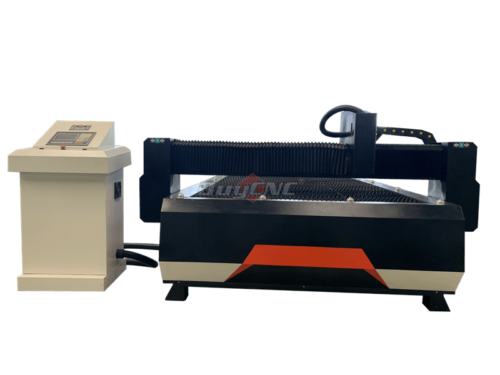

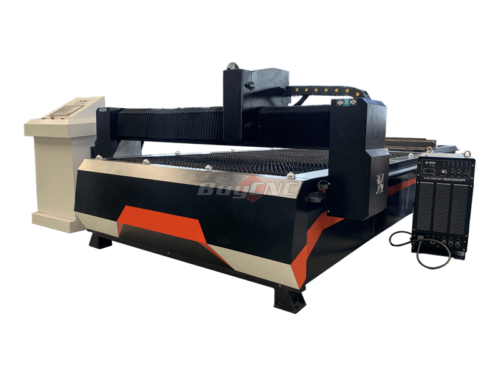

CNC plasma cutting tables for sale
This CNC plasma tables is designed for the heavy work,because it adopts the thick seemless square tube welded structure and square rails from Taiwan to ensure the machine with high speed moving speed and high accuracy.The Hiwin square rail on XYZ axis is very durable and high precision.The work table of this machine is the sawtooth shape table,which can avoid the plasma damage table, and make the table working life longer.And this CNC plasma table come standard with the lubricating oil pump,the function of the lubricating oil pump is to inject lubricating oil into the machine guide rail to prevent the transmission system from rusting, so that the friction force of the guide rail is smaller and the machine runs faster. If you want to know more about the CNC plasma cutting tables cutter,please leave your contact information,we will contact you ASAP!
CNC Plasma Tables Video
Feature of CNC plasma table Cutter
Sawtooth Shape Table And Fully Enclose Drag Chain
The CNC plasma tables cutter adopts the Sawtooth shape table,it can avoid the plasma damage table, and make the table working life longer.And in order to protect the machine,all the wires are wrapped in the drag chain. We use the fully enclosed drag chain, which has the advantage of preventing dirt from entering it, which can better protect the wires and extend the life of the wires.
Thickness Machine Frame And Double Drive Motor
CNC plasma table adopts thick seemless square tube welded structure and square rails from Taiwan to ensure the machine with high speed moving speed and high accuracy.And the Y axis is with double drive motors, faster speed, higher precision.
Starfire control system and FASTCAM Nesting Software
The CNC plasma table cutting machine use the starfire controller,it has large capacity storing function and it is very convenient to read and process metals. The fastcam Software for Plate Shape Cutting with integrated 2D drawing, tool pathing, true shape nesting, code verification & NC generation.It is very easy to use,and it has extremely Powerful CAD interface that cleans and compresses code ready for quality cutting.
Application In Widely Industries For Affordable CNC plasma tables Cutter
| CNC Plasma Tables Application Industry | Metal Industry | |
| Craft Industry | ||
| Decoration Industry | ||
| Car Industry | ||
| Gift Customization Industry | ||
| Art Model Industry | ||
| Other | ||
| Material that can be cut by Plasma Cutter | Steel | Aluminum |
| Stainless Steel | Copper | |
| Titanium | Metal | |
| Acrylic | Other | |
CNC Plasma Tables Technical Parameters
| Descriptions | CNC Plasma Tables Cutter Parameters |
| Model | APM-1530-HN2 |
| Working Area | 1,500×3,000mm |
| Source Power | American Hypetherm/Chinese Huayuan |
| Cutting thickness | 0.3-30mm |
| Control system | Starfire with THC |
| Nesting Software | Fastcam |
| Auto torch height controller | Yes |
| Drive Motors | Stepper motor |
| Design Software | Auto Cad/CAXA or others |
| XYZ Transmission type | X,Y rack gear, Z axis ballscrew |
| Table | Steel Sawthooth table |
| Working Mode | Untouched Arc Striking |
| Cutting Speed | 0-15m/min |
| Running Speed | 0-20m/min |
| Working Voltage | AC380V/3PH/50Hz |
| Repeat positioning accuracy | ±0.05mm |
| Process precision | ±0.35mm |
| File transfer mode | USB interface |
| packing size | 2200*3800*1800mm |
| Gross weight | 1,300kgs |
| Optional Parts | Rotary axis device |
Main Parts of Cheap CNC Plasma Tables Cutter
STARFIRE Control system
This is the starfire control system,this controller has highly reliable design and it has the ability to resist plasma interference, lightning strikes, and surges.This controller has practical flame/plasma cutting process, during plasma processing, the corner speed control and height controller control are automatically completed; remote operation can be achieved with a wireless remote control.It has the function of slitting compensation, and detects whether the compensation in the program is reasonable, and makes a corresponding report for the user to choose.Meanwhile this controller Part library with 24 types of graphics (expandable), including commonly used basic processing parts.Fully compatible with StarCAM nesting software, and compatible with mainstream nesting software such as IBE (Germany) and FASTCAM.And Multi-language operation interface conversion, dynamic graphic display, 1 to 8 times graphic magnification, automatic tracking of moving points, using U disk to read programs and timely software upgrades.
Automatic torch height controller((THC)
The arc voltage height adjustment controller detects the change of the arc voltage value when the plasma power supply is working, and controls the lifting of the height adjustment motor, so that the cutting torch adjusts the height according to the fluctuation of the steel plate to ensure that the distance between the cutting nozzle and the steel plate is kept at a relatively high level. Within the ideal range.
When cutting, the height of the cutting torch is automatically adjusted according to the change of the arc voltage, which can effectively solve the height drop problem caused by the irregularity and deformation of the plate surface, so that the cutting slit width is consistent and the cutting quality is stable.
Chinese Huayuan power source
This is the Chinese Huayuan power source,it has high load duration and capable of adapting to wide power grid voltage,so it is very suitable for heavy industry.The huayuan power source has Scientific dust-proof design, high reliability of the whole machine.Meanwhile it has compact structure, small size, light weight, can be installed on CNC machine tools.The cutting air source uses cheap compressed air, and the cutting cost is low.And this power source has many advanced function,such as the plasma gas pressure detection and indication function,gas test function, easy to adjust the air pressure and automatic protection function for overheating, overvoltage, undervoltage, and lack of phase.
Heavy Duty Machine bed
The frame of the CNC plasma tables machine is welded with thick steel square tubes, which can bear heavy workpieces without deformation, so the machine can maintain high precision for a long time.
FASTCAM Nesting software
Stepper motor
Fully enclosed drag chain
Sawtooth shape table
Lubricating oil pump
High precision cutting head
Optional Parts of plasma cutting tables
Flame cutting function
Drilling Head
Rotary axis attachment
Projects of CNC plasma tables cutter
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for CNC plasma cutting tables for sale
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the plasma cutting tables machine.
Our Service
Packing for Cheap CNC plasma tables
- Step 1: PVC film packing, which can ensure that the CNC plasma cutter is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of plasma tables Cutter
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all Plasma CNC Cutter.
After-Sale Service of plasma cutting tables for sale
- The warranty period is 2 years for the 1530 plasma cutter machine.
- When you need to replace the wearing parts of cheap CNC machine, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The plasma cutting tables for sale software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for 4×8 CNC router machine sale installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the CNC plasma cutter overseas.
Delivery for CNC Plasma Cuttter
All of the cheap CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
