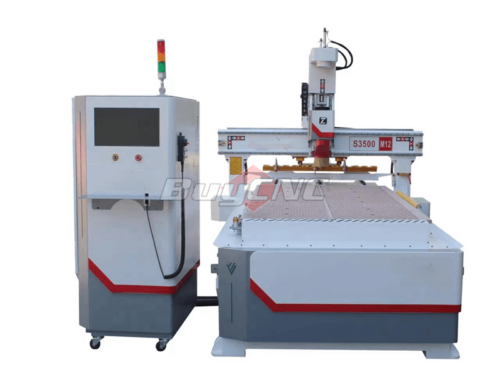

1325 CNC nesting machine for Sale
The 1325 CNC nesting machine is the latest ATC nesting CNC router machine developed by BuyCNC. This machine is equipped with a 9KW(12HP) air-cooled spindle and a 12-tool high-speed tool changer, which is used to perform complex and various machining operations. And this machine has built-in eject pins and a controllable dust cover with a built-in machine lubrication system for accurate material loading every time. So if you use this CNC nesting machine, it can improve the processing quality and processing efficiency, if you want to know more about this machine, please leave us your contact information.
CNC nesting machine Video
Feature of CNC nesting router machine
Application In Widely Industries For CNC nesting router machine
|CNC wood cutter Application Industry||Furniture Industry|
|Musical Instrument Industry|
|Gift Customization Industry|
|Art Model Industry|
|Material that can be cut by ATC CNC router||Wood||MDF|
|Composite Board||Melamine Board|
Detailed Application Industries:
Customized furniture, wardrobes, cabinets, kitchen cabinets, panel furniture, cabinet doors, cabinets, game cabinets, cloakroom cabinets, wine cabinets, office furniture, melamine board furniture cabinets, wood-based panel furniture cabinets, particle board furniture cabinets, plywood cabinet furniture, solid wood Plug-in panel furniture, bookcases, storage cabinets, chest of drawers, living room furniture, bedroom furniture, children’s furniture, study furniture, dining tables, dining chairs, coffee tables, Nordic furniture, modern furniture, blockboard furniture, MDF cabinets, oak boards Furniture, disassembly and assembly furniture.
China CNC nesting machine Technical Parameters
|X,Y,Z Working Area||1300*2500*300mm|
|Spindle Power||9kw ATC air cooling spindle|
|Tool Shank||ISO 30|
|Traveling Positioning Accuracy||±0.02/2000mm|
|Rail and Transmission||X Y axis helical gear transmission, Z axis Taiwan TBI Ball Scre|
|Max. Rapid Travel Rate||60m/min|
|Max. Working Speed||40m/min|
|Drive Motors||LNC servo motor and driver 1.5 KW|
|Command Language||G Code|
|Operating System||Taiwan LNC|
|Software capabilities||Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.|
|Running Environment||Temperature: 0℃~45℃ Relative Humidity: 30%~75%|
Main Parts of CNC nesting machine for sale
Taiwan LNC Controller with big screen
This is the Taiwan LNC Controller, it has a big screen, it is operated by keyboard + mouse. It supports various pulse type drives and a variety of woodworking machine standard functions and U disk reading functions. It has a dedicated operation interface for woodworking engraving machines, and interpolation can be used for a variety of wood processing needs.
Taiwan bus communication LNC servo drive motor
This is the Taiwan Bus Communication LNC Servo Drive Motors, this kind of motor has strong performance and is more compatible with the control system, and its transmission accuracy and reliability are high, and its anti-interference ability is extremely strong. And the most important thing is that it is an absolute value servo, which can continue to work after starting up, without returning to the origin, without repeating positioning, and with higher precision. Efficiency is also higher.
12-position Tool Rack
This is the 12-position Tool Rack, and this tool holder moves together with the machine gantry, saving tool change time. To improve machining efficiency, you can place 12 tools on this tool holder.
9KW High Frequency Automatic Tool Changer Spindle
This is the 9KW High Frequency Automatic Tool Changer Spindle, this spindle is highly accurate and maintenance free, it also uses industry standard ER chucks and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM and with a pneumatic retractable vacuum hood. And if you don’t like this spindle, Italy HSD spindle is for optional.
Pneumatic Material Alignment Stops
Thick Steel Base Frame
Japan Shimpo gear reducer
XY Helical rack and pinion
Z Axis High precision TBI ballscrew
Vacuum function switch
Optional Parts of CNC nesting machine for sale
Italy HSD 9KW ATC air cooling spindle
Oil mist Coolant System
HSD Aggregate Tool
Projects of 1325 CNC nesting machine
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for CNC nesting router machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the China CNC nesting machine.
Packing for Affordable nesting CNC machine
- Step 1: PVC film packing, which can ensure that the nesting CNC machine is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of 1325 CNC nesting machine factory
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all 1325 CNC nesting machine factory.
After-Sale Service of nesting CNC router machine
- The warranty period is 2 years for the CNC nesting router machine.
- When you need to replace the wearing parts of nesting CNC machine, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The CNC nesting machine for sale software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for nesting CNC machine installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the CNC nesting router machine overseas.
Delivery for China CNC nesting machine
All of the nesting CNC router machine can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.
The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.
You can get the nesting CNC router machine directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy a nesting CNC machine from BuyCNC.
