Affordable Cutting Metal machine for sale
Do you want to own a affordable cutting metal machine? BuyCNC launched a laser metal cutting machine specifically for metal processing maybe is a good choice. This laser cut metal machine can install 500w, 1000w or 1500w fiber laser generator, which makes this cutting sheet metal machine can cut many materials, especially thin metal plates, such as 0-12mm carbon steel plate, 0-5mm Stainless steel linoleum and some other thin materials. The main parts of the cutting metal machine are all world famous brand, such as the Japan Fuji drive motor, German Vastun helical rack, Switzerland Raytools laser head and so on.Now the affordable laser metal cutting machine for sale at a low price, We will provide the best pre-sale and after-sales service.
Cutting metal machine Video
Feature of Cutting Sheet metal machine
Strong laser cutting ability of Cutting Metal Machine
This laser metal cutting machine is designed by European designers and can meet most laser cutting needs. The cutting metal machine can be installed a 500w, 1000w, or 1500w fiber laser generator, which allows it to cut a variety of metal plates, such as stainless steel, carbon steel, iron, aluminum, etc., especially for thin metal plates such as When cutting 0-12mm carbon steel sheet and 0-5mm stainless steel linoleum, the effect of the laser cut metal machine is very good. Now this Cutting sheet metal machine is widely used in various industries，for example the advertising, signs,auto parts,smart home, home appliances and so on.
High-quality machine body of Cutting metal machine
The base frame of the cutting metal machine is made of heavy steel and the processing technology is very advanced. This is the process of how we make our machine frame:Using the thick steel pipe to weld the machine frame→ Annealing process→ Rough machining→ Vibratory Stress Relief → Fine machining. This makes the cutting sheet metal machine will not get deformed for long time use. The gantry beam of laser cut metal machine is made of aerospace aluminum, which has good toughness, light weight and resistance Corrosion, oxidation resistance and low density,so it can greatly increase the processing speed
advanced components of the cutting sheet metal machine
The main components of The Cutting metal machine are all world-renowned brand components, all of which have extremely high quality. For example, in terms of power, the laser metal Cutting machine uses Japan Fuji servo motor, The big powerful servo motor on Y axis, makes the machine cutting at high speed, the Max. speed can be 80m/min.Meanwhile, it is also equipped with Japan Shimpo gear reducer, which has many advantages,such as high transmission efficiency, low energy consumption and superior performance. Longer service life.Therefore, the laser cut metal machine can be operated with high precision and high stability.
Application In Widely Industries For Affordable Cutting Metal Machine
| Laser Cut Metal Machine Application Industry | Advertising Industry | |
| Sign Industry | ||
| Ironware Industry | ||
| Machinery Industry | ||
| Auto parts Industry | ||
| Art Model Industry | ||
| Other | ||
| Material that can be cut by Cheap Cutting Metal Machine | Metal Plate | Iron Plate |
| Silver Plate | Carbon Fiber | |
| Brass Sheet | Galvanized Iron | |
| Bronze Plate | Other | |
laser metal cutting machine Technical Parameters
| Descriptions | Laser Cut Metal Parameters |
| Model | ATF-3015-E |
| Working Area | 3000*1500mm |
| X axis working area | 3,000mm |
| Y axis working area | 1,500mm |
| Laser Power | 500W/1000W/1500W for option |
| Positioning accuracy | ±0.03mm |
| Repeatability positioning accuracy | ±0.02mm |
| XY Axis Maximum Acceleration | 0.5-0.8g |
| XY Axis Max. speed | 60m/min |
| Working Table | Serrate working platform |
| XY Axis Transmission system | German helical rack and pinion |
| Z axis Transmission system | Taiwan TBI ballscrew |
| Cooling System | Industry water chiller |
| Power Supply Rated Voltage | 3-phase 380V/50Hz or Custom made |
| Machine Weight | 2,000KG |
| Dimension | 2250*4500*2100mm |
Main Parts of Laser metal cutting machine
base frame of Cutting sheet metal machine
As a laser metal cutting machine, a strong base frame is very important. The base frame of the laser cut metal machine is made of heavy-duty steel through a variety of processes.Our process of manufacturing base frame is: Using the thick steel pipe to weld the machine frame→ Annealing process→ Rough machining→ Vibratory Stress Relief→ Fine machining.After this series of steps, the frame of this cutting metal machine will not be deformed and has a certain degree of seismic resistance.
Max laser generator of Cutting metal machine
The Max Laser Generator is a world-famous fiber laser machine brand, and their product quality is excellent.
The Max laser generator of cutting metal machine have many advantages such as Extremely high electro-optic conversion efficiency,Excellent stability,Excellent single mode beam quality,Stable beam pointing.When the Cutting sheet metal machine is working, it can directly control the range of cutting frequency and ensure the stability of the laser beam, thereby improving the work efficiency of the cutting sheet metal machine.
The gantry Beam of cutting sheet metal
The gantry beam of laser metal cutting machine is made of Aerospace aluminum. This material is manufactured in accordance with aerospace standards and is extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams of cutting metal machine. This gantry beam has good Toughness, light weight, corrosion resistance, oxidation resistance and low density, etc., can greatly improve the processing speed and quality of cutting sheet metal machine.
CypCut Controller of cutting metal machine
The CypCut controller of laser cut metal machine has extremely high control capabilities. its track accuracy is 0.05mm and the positioning accuracy is 0.01mm. The cutting metal’s maximum cutting speed is 30m / min and the maximum moving speed is 80m / min and the aximum acceleration is 0.8G. Meanwhile, The cypcut controller of cutting metal machine supports flying cutting, frog jumping, electric focusing, double exchange workbench and two levels of perforation. You can also control the metal sheet cutter machine through the communication methods of most mainstream lasers on the market.
Height Controller of Cutting sheet metal machine
The height controller of this cutting sheet metal is famous BCS100 V3.0.This BCS100 capacitive height controller is a high-performance control device which uses closed-loop control method. It can adapt to any cutting head and nozzle and support alarm while hitting the board and beyond theedge. This cutting metal controller also Support leapfrogs and segmented piercing, Edge Seek function and detect the head height in realtime.
laser head of laser metal cutting machine
The laser head of Our Cutting metal machine uses the BT240S series of Swiss RAYTOOLS AG. As a fiber laser cutting head suitable for medium and high-power industrial applications and cutting metal, it is fully optimized in terms of dust-proof design and customer experience. In order to avoid contamination of the collimating lens when inserting and pulling out the optical fiber, this laser head adds an upper protective lens to the collimating assembly. Meanwhile, the structure of the protective lens has also been comprehensively upgraded, and the protective lens is added to the protective lens. Dust cover. The double-layer protection design greatly improves the user’s experience of replacing the protective lens, and the risk of lens contamination is almost zero.
Water chiller of laser metal cuting machine
XY Axis Taiwan Hiwin of cutting metal
The blocks that prevents the rail from moving
Serrate working platform of cutting sheet metal
Japan SMC Electrical Proportional Valve
France Schneider Low voltage electrical parts

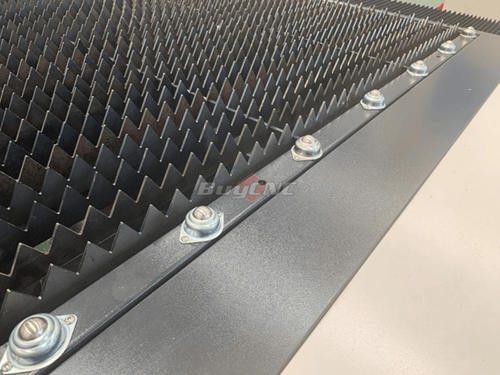

Feeding roll of laser cut metal
Exhaust Fan&Wind Pipe of laser metal cutting machine
Control Cabinet of cutting metal
Automatic lubrication system
American Honeywell
Alignment material function
Projects of Laser Metal Cutting machine
Strong Factory Strength of Laser metal cutting machine
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our cutting metal machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for laser cutting metal machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the Cutting sheet metal machine.
Our Service
Packing for Affordable Cutting metal machine
- Step 1: PVC film packing, which can ensure that the cutting sheet metal machine is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of laser metal cutting machine
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all laser cut metal machine.
After-Sale Service of cutting metal machine for sale
- The warranty period is 2 years for the cutting metal.
- When you need to replace the wearing parts of cutting sheet metal, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The sheet metal laser cutting software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for sheet metal laser cutter installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the cheapest cutting metal laser overseas.
Delivery for laser cut metal machine
All of the cutting metal machine can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
