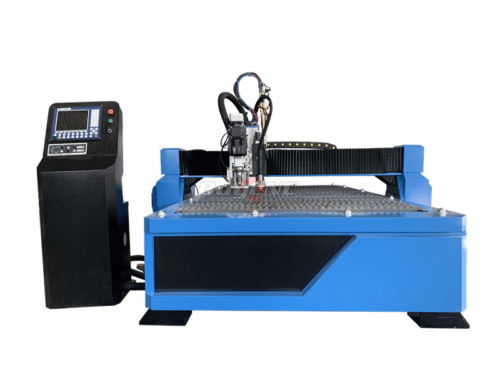

CNC Plasma Cutting and Drilling Machine with Acetylene Flame Cutting Head 5 x 10 Plasma Table


This is a 5×10 CNC plasma table cutter,the working area of this machine is 1500mm x 3000mm.This CNC plasma cutter sales machine is multi-functional,it come with the plasma cutting head and the drilling head.As a CNC plasma cutting and drilling head,so this machine can process almost any metal.If you want to know the more information,Just Contact Me.

Model                          APM-1530-WD2-D-A

Rating                         ♥ ♥ ♥ ♥ ♥   5/5 based on 18 ratings and reviews

Plasma Source           Chinese Huayuan/American Hypetherm

Cheap CNC Plasma Cutter Sales

  This plasma cutter sales machine is a multi-function machine.It is a CNC plasma cutting and drilling machine,because this machine is with plasma cutting head and drilling head and the drilling head is for small hole drilling with high precision.The 5×10 CNC plasma table cutter has many advantages,such as the cutting edge is small and tidy,High cutting speed, high precision and low cost and so on.If you really like the 5×10 plasma table cutter,please leave your information,just contact me.

Plasma Cutter Sales Machine Video

Feature of 5x10 plasma table cutter

Multi-functional Machine And High Quality Machine Work Table

This CNC plasma cutting and drilling machine is a multi-functional,this machine is with plasma cutting head and drilling head. The drilling head is for small hole drilling with high precision.And this CNC plasma table cutter adopts thickseemless square tube welded structure and square rails from Taiwan to ensure the machine with high speed moving speed and high accuracy.

Fangling control system and good software capability

The controller system of this CNC plasma cutter sales machine is the Fangling control system.This system has large capacity storing function and convenient to read and process.This machine support FASTCAM nesting software, such as the standard G code path generated file. And also can read DXF file directly, which is produced by AUTOCAD. U disk exchange control system processing files, easy to operate.

The ARC Auto Adjusting System And Auto Plasma Power Adjustment

Our 5 x 10 plasma table cutter machine has the automatic Torch height controller(Arc auto adjusting system),which can choose the best distance between plasma gun and working piece to ensure high accuracy cutting.And the plasma power supply adjusts current according to different thickness of the materials to ensure materials cutting without burr.

Application In Widely Industries For 5x10 CNC plasma table Cutter

Navigation Bar
5×10 Plasma Table Application Industry Metal Industry
Craft Industry
Decoration Industry
Car Industry
Gift Customization Industry
Art Model Industry
Material that can be cut by Plasma Cutter Steel Aluminum
Stainless Steel Copper
Titanium Metal
Acrylic Other

5 x 10 plasma table Cutter Technical Parameters

Navigation Bar
Descriptions Plasma Cutter Sales Parameters
Model APM-1530
Working Area 1,500×3,000mm
Source Power American Hypetherm/Chinese Huayuan
Cutting thickness 0.3-30mm
Control system Fangling with THC
Nesting Software Fastcam
Auto torch height controller Yes
Drive Motors Stepper motor
Design Software Auto Cad/CAXA or others
XYZ Transmission type X,Y rack gear, Z axis ballscrew
Table Steel Sawthooth table
Working Mode Untouched Arc Striking
Cutting Speed 0-15m/min
Running Speed 0-20m/min
Working Voltage AC380V/3PH/50Hz
Repeat positioning accuracy ±0.05mm
Process precision ±0.35mm
File transfer mode USB interface
packing size 2200*3800*1800mm
Gross weight 1,200kgs
Optional Parts Rotary axis device

Main Parts of CNC plasma cutting and drilling machine

Navigation Bar
Fangling Control system

Fangling Control system

  This is the fangling controller system,this system upgrade adopts the U disk upgrade method, which is convenient, simple and practical, and provides life-long upgrade services.This controller Support 4 modes of oxygen gas, plasma, powder spraying and demonstration and Support edge cutting, which can reduce preheating time for thicker steel plates.According to the thickness of the steel plate, the speed can be automatically limited at the corners to effectively prevent over-burning.This controller support remote control in P2P mode or BCD (8421) and serial RS232 mode,Support laser to point function and Support plasma dynamic perforation function.

Automatic torch height controller(THC)

  This is the Automatic torch height controller((THC) ,The arc voltage height adjustment controller detects the change of the arc voltage value when the plasma power supply is working, and controls the lifting of the height adjustment motor, so that the cutting torch adjusts the height according to the fluctuation of the steel plate to ensure that the distance between the cutting nozzle and the steel plate is kept at a relatively high level. Within the ideal range.

When cutting, the height of the cutting torch is automatically adjusted according to the change of the arc voltage, which can effectively solve the height drop problem caused by the irregularity and deformation of the plate surface, so that the cutting slit width is consistent and the cutting quality is stable.

Automatic torch height controller((THC)
Chinese Huayuan power source

Chinese Huayuan Power Source

This is the Chinese Huayuan power source,it has high load duration and capable of adapting to wide power grid voltage,so it is very suitable for heavy industry.The huayuan power source has Scientific dust-proof design, high reliability of the whole machine.Meanwhile it has compact structure, small size, light weight, can be installed on CNC machine tools.The cutting air source uses cheap compressed air, and the cutting cost is low.And this power source has many advanced function,such as the plasma gas pressure detection and indication function,gas test function, easy to adjust the air pressure and automatic protection function for overheating, overvoltage, undervoltage, and lack of phase.

Drilling Head

This plasma cutter sales is with plasma cutting head and drilling head. The drilling head is for small hole drilling with high precision.This is a drilling head,because the holes with very small diameters are not suitable for plasma cutting. We need to use a drilling device to drill small diameter holes.

Drilling Head
High precision cutting head

High precision cutting head

Stepper motor

Stepper motor

Material feeding roller

Material feeding roller

Optional Parts of CNC plasma cutting and drilling machine

Navigation Bar
Flame cutting function

Flame cutting function

American Hypetherm power source for option

American Hypetherm power source

Rotary axis attachment

Rotary axis attachment

Projects of 5x10 CNC plasma table Cutter

Navigation Bar
plasma sample

Strong Factory Strength

Navigation Bar
CNC Machining
Buycnc Machine Assembly Plant

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC plasma machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.

High Precision Installation for CNC plasma cutter sales

Navigation Bar

During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the CNC plasma cutting and drilling machine.

Our Service

Navigation Bar

Packing for 5 x 10 plasma table Cutter

  • Step 1: PVC film packing, which can ensure that the 5 x 10 plasma table cutter is completely covered, avoiding water and rust.
  • Step 2: Wooden box packing, with a fixed template on the outermost layer.
  • Step 3: All of the packing are inspected carefully by QC before delivery.
ABS-1325 CNC Router plywood case packing
ABS-1325 CNC Router Pro-Sale Service

Pro-Sale Service of 5x10 CNC plasma table

  • Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
  • Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
  • Inquiries and consulting services for all CNC plasma cutter sales.

After-Sale Service of 5x10 plasma table Cutter

  • The warranty period is 2 years for the CNC plasma cutter sales machine.
  • When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
  • If there are any problems during the warranty period, we will replace the main parts free of charge.
  • The CNC plasma cutter sales software provides free lifetime update service.
  • 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
  • We provide English training videos and user manuals for 5 x 10 plasma table cutter installation and operation, etc. We can also provide technical guidance remotely.
  • Free training at the BuyCNC factory.
  • The engineer can repair the plasma cutter sales overseas.
ABS-1325 CNC Router After-Sales-Support
ABS-1325 CNC Router Support shipment Delivery

Delivery for plasma cutter sales

All of the cheap CNC machine can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!

About BuyCNC

BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser  engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.

The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.

 You can get the CNC plasma cutting and drilling machine directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an cheap CNC machine from BuyCNC.
