Cheap Economical 3D CNC Router Machine 5 Axis Carving Styrofoam Foam EPS Sculpture CNC Foam Router Manufacturers

$23,500.00

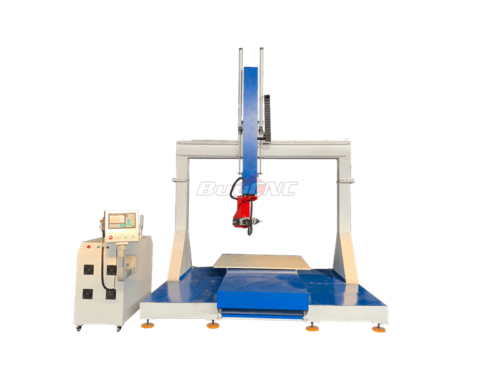

This is an affordable 5 axis CNC router machine, this machine is not only cheap but also its Z-axis has been heightened, which makes the machine more convenient to process large materials. This 5 axis CNC foam router is an economical 5 axis CNC foam carving machine specially developed by BuyCNC for the foam processing industry. This machine can be used to produce foam molds, sculptures, decorations, etc. If you are interested in this machine, please contact BuyCNC.

Model                          APS-1000-5

Rating                         ♥ ♥ ♥ ♥ ♥   4.8/5 based on 50 ratings and reviews

Spindle                        9KW High-Frequency Automatic Tool Changer Spindle

Cheap 5 Axis cNC Router Machine for Sale

Do you want to have a cheap 5 axis CNC router machine that can process large materials? BuyCNC recently released a large CNC 5 axis router in Xinyang. This machine is cheap and has a long service life. The most important thing is the Z of the machine. The shaft is heightened, and you can produce large molds without worrying about the machine not being able to hold the material. This 5 axis CNC foam router is very cost-effective. If you want to know more about this machine, please leave your contact information and we will contact you as soon as possible.

The5 axis CNC router machine is widely used in the following industries:

Foam sculptures, modeling sculptures, large-scale foam molds, car lost foam, cartoon portrait sculptures, portrait sculptures, amusement parks, beaches and other exhibition foam products, EPS modeling sculpture products, foam car models, amusement park decorations, etc.

5 Axis CNC Foam Router Video

Feature of 5 Axis CNC Router Machine

Affordable Price and Higher Z-axis of CNC router Machine 5 axis

This CNC router 5 axis price is very cheap, so this machine is very popular in small and medium factories. They like this cheap and large 5 axis CNC router machine. Not only that, the Z axis of this machine has been heightened, which has a higher processing area than the ordinary 5 axis CNC machine. This means you can place taller products on the table for processing.

Mobile Worktable and steel worktable

Another feature of this 5 axis foam router is that the structure of this machine is that the table can be moved, which not only improves the processing efficiency of the machine but also improves the accuracy of the product. Not only that, its countertop is made of steel material, so the workbench is very strong and can process any material.

Professional Industrial Goldge 5 Axis Controller

This CNC foam carving machine come standards with the Goldge 218Me 5 Axis CNC controller, as an industrial CNC controller, it has many advanced functions. And this big 5 axis CNC foam router is installed with 1500w servo motor and driver, which can bring strong power to the machine.

Application In Widely Industries For Affordable 5 Axis CNC Router Machine

Navigation Bar
CNC foam router Application IndustrySculpture Industry
Furniture Industry
Decoration Industry
Foam Industry
Gift Customization Industry
Art Model Industry
Other
Material that can be cut by Cheap CNC routerFoamMDF
PlywoodWood
Composite BoardMelamine Board
AcrylicOther

5 Axis CNC Foam Router Technical Parameters

Navigation Bar
Descriptions 5 Axis CNC Foam Router Parameters
Model APS-1000-5
Working Area 1000*1000*1000mm
Spindle Power 6KW HQD MTC spindle, 0-18,000RPM, Air cooling
Spindle Rotating Degree A Axis: 360° C Axis: ±90°
Accuracy ±0.01/2000mm
Table Surface Steel
X,Y,Z Rail and Transmission X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw
Max. Rapid Travel Rate 60m/min
Max. Working Speed 40m/min
Spindle Speed 0-24,000RPM
Drive Motors Servo motor and driver 1500w
Working Voltage AC380V/3PH/50Hz
Command Language G Code
Operating System Goldge 218Me 5 Axis
Interface USB
Software capabilities Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.
Running Environment Temperature: 0℃~45℃ Relative Humidity: 30%~75%

Main Parts of CNC Router 5 Axis Machine

Navigation Bar
Goldge 218Me 5 Axis CNC controller

Goldge 218Me 5 Axis CNC controller

This is a professional industrial CNC router controller, It can be used for 5 axis CNC router machines. And this controller has many advanced functions, such as acceleration and deceleration functions, can control multiple spindles and PLC functions and other functions, if You don’t like this controller, we also prepared Taiwan Syntec 610MA-E5 CNC machine controller for option for you.

6KW Manual Tool Change Spindle

This is the 6kw high frequency manual tool change spindle for the 5 Axis CNC Router machine. This spindle is an air-cooled spindle with long working time and high precision. And the fully programmable speeds from 6,000 to 18,000 RPM.

The spindle can be rotated on A axis right and left ±90° and on C axis 360 °.

6KW Manual Tool Change Spindle
Welded Steel Base Frame

Welded Steel Base Frame

The overall structure of this 5 axis foam router is made of high-quality seamless welded square tubes, and after a series of treatments, the stability and sturdiness of the machine itself have been improved, which can make the machine possess Longer service life.

Steel Table

This cheap 5 axis CNC foam carving machine use the steel workbench, which is stable and strong, and can carry most materials for processing. And this workbench is a movable workbench, which also improves the processing quality of the machine.

Steel Table
Hand-held Pulse Generator

Hand-held Pulse Generator

CNC Tool Calibration

CNC Tool Calibration

Syntec Servo Motor and Driver 1kw

Servo Motor and Driver 1500w

Shimpo gear reducer

Shimpo gear reducer

XYZ Axis Taiwan Hiwin Square Rail

Hiwin square rail on XYZ axis

XY Helical rack and pinion

Helical rack and pinion

Optional Parts of 3d CNC router foam Machine

Navigation Bar
8-position Tool Rack

8-position Tool Rack

Syntec bus communication 5 axis industrial AC servo CNC controller

Syntec 5 axis industrial AC servo CNC controller

9KW ATC Tool Change Spindle

9KW ATC Tool Change Spindle

Projects of CNC foam carving machine

Navigation Bar
foam router sample1
cnc foam router sample

Strong Factory Strength

Navigation Bar
CNC Machining
Buycnc Machine Assembly Plant

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.

High Precision Installation for best 5 axis CNC router foam

Navigation Bar
ABS-1325-CNC-Router-high-precision-installation

During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the CNC foam carving machine.

Our Service

Navigation Bar

Packing for 5 Axis Foam Cutter

  • Step 1: PVC film packing, which can ensure that the CNC router 5 axis price is completely covered, avoiding water and rust.
  • Step 2: Wooden box packing, with a fixed template on the outermost layer.
  • Step 3: All of the packing are inspected carefully by QC before delivery.
ABS-1325 CNC Router plywood case packing
ABS-1325 CNC Router Pro-Sale Service

Pro-Sale Service of CNC foam router manufacturers

  • Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
  • Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
  • Inquiries and consulting services for CNC router foam cutter.

After-Sale Service of CNC foam router manufacturers

  • The warranty period is 2 years for the 4×8 CNC router cheap machine.
  • When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
  • If there are any problems during the warranty period, we will replace the main parts free of charge.
  • The CNC router for foam cutting software provides free lifetime update service.
  • 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
  • We provide English training videos and user manuals for CNC foam router machine sale installation and operation, etc. We can also provide technical guidance remotely.
  • Free training at the BuyCNC factory.
  • The engineer can repair the 5 axis foam router overseas.
ABS-1325 CNC Router After-Sales-Support
ABS-1325 CNC Router Support shipment Delivery

Delivery for 5 Axis CNC Foam Cutter

All of the cheap CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!

About BuyCNC

BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser  engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.

The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.

 You can get the 4×8 CNC router wood directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an cheap CNC router from BuyCNC.
