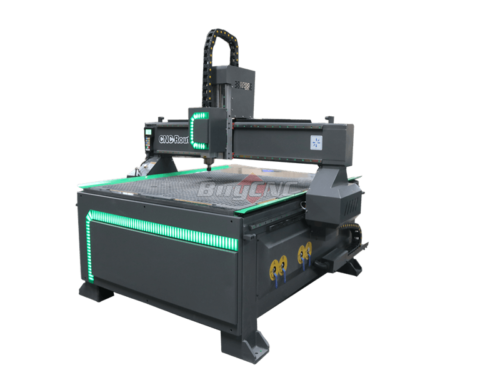

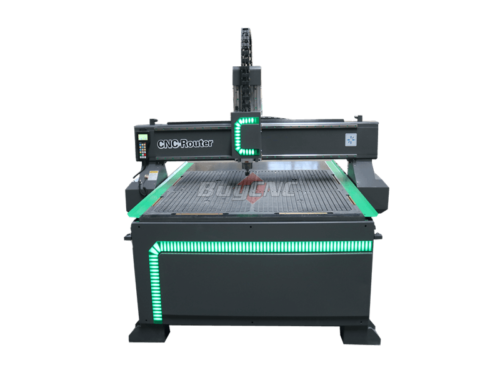

24x24 Chinese CNC Router Vaccum Attachment Wood MDF CNC Router


This machine is the latest mdf CNC router machine in 2021, and as the most popular Chinese CNC router machine. It is equipped with high-quality CNC router rack and pinion and CNC router vacuum attachment. So it is also a cheap CNC router vacuum engraver machine. It is equipped with the easiest to operate DSP Controller, so you can learn to operate this machine in the fastest time. If you want to know more about it, Please Contact me ASAP!

Model                          ABS-1212-B

Rating                         ♥ ♥ ♥ ♥ ♥   4.8/5 based on 33 ratings and reviews

Spindle                        2.2kw air cooling spindle

4x4 Chinese CNC Router for Sale

This mdf CNC router machine is so beautiful and full of sense of science and technology. The base frame of this machine is made of welded steel pipes, so this machine has high rigidity and stronger bearing strength than other base frames. In order to provide more powerful power to the machine, This machine adopts double driver motors on Y-axis, so this CNC router vacuum machine become more powerful and moving stably. The work table of this 24×24 CNC router is Hybrid Vacuum &T-slot Table.You can use vacuum adsorption to fix the material, you also can use T-slot to fix the material,The control system of the Chinese cnc router is DSP NK105G2 controller, it support works offline and is very easy to use. So the application field of this machine is very wide, such as Furntiure industry, Advertising industry, Decoration industry, Musical instrument industry, Plate processing industry, Craft Industry and so on. If you like this mdf CNC router machine, please contact us, we will give you affordable price.

Chinese CNC Router Video

Feature of Cheap MDF CNC Router

Hiwin Square Rail and CNC router rack and pinion

This mdf CNC router machine adopts the Hiwin square rail,it has higher stability and rigidity.And this square rail makes the gantry moving and spindle moving at high speed with high precision. And Hiwin square rail is more durable.This CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability.

Stable Base Frame and Stepper Motors

The Base frame of this CNC router vacuum machine is fabricated from heavy-duty tubular steel that is welded, stress relieved and precision machined, so that the foundation remains true and steady over the operational life of the 24x24 CNC router machine.And this machine utilizes brushless micro-stepper motors.These motors require no regular maintenance, therefore reducing any maintenance downtime.

Good software compatibility and DSP Controller

This machine can be controlled by the DSP Hand-held Controller, this Controller does not need to be connected to the computer to control the machine, and supports Break points, power off memory function, continue working when power on, without wasting time to re-work. So, this Controller has good software compatibility and is suitable for Vectric Aspire, Vectric Vcarve, Type3, Artcam, Castmate, Ucanam, JDpaint and many other CAD/CAM design software.

Application In Widely Industries For Affordable MDF CNC Router Machine

Navigation Bar
MDF CNC Router Application IndustryAdvertising Industry
Furniture Industry
Decoration Industry
Musical Instrument Industry
Crafts Industry
Plate Processing Industry
Material that can be cut by Cheap CNC routerWoodMDF
PlywoodCarbon Fiber
Composite BoardMelamine Board

CNC Router Vacuum Machine Technical Parameters

Navigation Bar
Descriptions MDF CNC Router Parameters
Model ABS-1212-B
Working Area 1300*1300*200mm
Machine Frame Tubular Steel
Spindle Power 2.2kw air cooling spindle
Accuracy ±0.025mm
Table Surface Hybrid Vacuum &T-slot Table
X, Y Structure X Y axis helical gear transmission
Z Structure Z axis Taiwan TBI Ball Screw
Max. Rapid Travel Rate 25,000mm/min
Max. Working Speed 20,000mm/min
Spindle Speed 0-24,000RPM
Vacuum Pump 2.2kw optional
Drive Motors Stepper motor and driver
Working Voltage AC380V/3PH/50Hz
Command Language G Code
Operating System DSP NK105G2
Interface USB
Software capabilities Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.
Running Environment Temperature: 0℃~45℃ Relative Humidity: 30%~75%

Main Parts of Cheap MDF CNC Router for sale

Navigation Bar
DSP Controller

DSP NK105G2 Controller

This is the Nc-studio DSP hand controller,which is easy to operate, and it does not require additional connection to the computer, which makes the mdf CNC router machine completely autonomous.

1.3 Axes controller, support multiple cylinders.

2.Large storage space, strong U disk compatibility, fast read speed, and more reliable U disk processing.

3.Tool path Supported:

.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt etc.

4.Software Language support: Chinese, English, Polish, Vietnamese.

2.2kw Air Cooling High Frequency spindle

The CNC router vacuum machine comes standard with a 2.2KW high frequency air cooling spindle. These high-precision spindles require no maintenance, use industry standard ER collets, come fully programmable speeds from 6000 to 24000 RPM, and it also come complete with a vacuum hood and wrenches.

2.2kw Air Cooling High Frequency spindle
Hybrid Vacuum and T-slot table

Hybrid Vacuum &T-slot Table

This Chinese CNC Router Machine has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, and this vacuum table face also has T-slot.So we can use the vacuum suction table to fix the material, or use T-slot To fix the material. The surface of the vacuum table has multiple areas, so that we can process it in different areas. There are heavy-duty aluminum T-slot profiles in multiple positions on the workbench. The T-slot accepts Alpha’s square M6 T-nut. This Hybrid Vacuum & T-slot Table is the most popular workbench.

Heavy Welded Steel Pipes Gantry

The Gantry of this Chinese CNC Router Machine is constructed of tubular steel with reinforcing ribs. At the same time, in order to improve the stability of the gantry, we welded the entire gantry together to achieve a stable beam assembly. This high-quality process can improve the machine the cutting accuracy.

Heavy Welded Steel Pipes Gantry
XY Helical rack and pinion

XY Helical rack and pinion

Z Axis TBI Ball screw

Z Axis TBI Ball screw

Drive Motors

Drive Motors

Base Frame

Base Frame

CNC Tool Calibration

CNC Tool Calibration

Oil Lubrication System

Oil Lubrication System

Optional Parts of MDF CNC Router Machine

Navigation Bar
Rotary Axis

Rotary Axis

Oil mist Coolant System

Oil mist Coolant System


MACH3 Controller

Projects of Cheap Chinese CNC Router Machine

Navigation Bar

Strong Factory Strength

Navigation Bar
CNC Machining
Buycnc Machine Assembly Plant

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.

High Precision Installation for CNC Router Vacuum Machine

Navigation Bar

During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the mdf CNC router table cheap machine.

Our Service

Navigation Bar

Packing for 1212 CNC Router Machine

  • Step 1: PVC film packing, which can ensure that the CNC Router Vacuum attachment is completely covered, avoiding water and rust.
  • Step 2: Wooden box packing, with a fixed template on the outermost layer.
  • Step 3: All of the packing are inspected carefully by QC before delivery.
ABS-1325 CNC Router plywood case packing
ABS-1325 CNC Router Pro-Sale Service

Pro-Sale Service of 24x24 CNC Router

  • Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
  • Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
  • Inquiries and consulting services for all CNC Router Vacuum Machine.

After-Sale Service of MDF CNC Router

  • The warranty period is 2 years for the 4×4 CNC router cheap machine.
  • When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
  • If there are any problems during the warranty period, we will replace the main parts free of charge.
  • The Chinese CNC router 4×4 for sale software provides free lifetime update service.
  • 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
  • We provide English training videos and user manuals for 4×4 CNC router machine sale installation and operation, etc. We can also provide technical guidance remotely.
  • Free training at the BuyCNC factory.
  • The engineer can repair the CNC router rack and pinion overseas.
ABS-1325 CNC Router After-Sales-Support
ABS-1325 CNC Router Support shipment Delivery

Delivery for CNC Router Vacuum machine

All of the cheap CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
