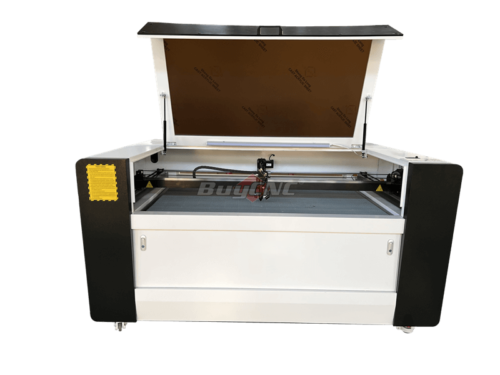

wood laser engraving machine for Sale
This is the professional CO2 laser engraving machine, this machine can also be called acrylic laser engraving machine or plastic engraving machine. It has a wide range of applications, this machine is very suitable for garment proofing, wide tailoring, leather industry, decoration industry, etc. And this acrylic laser engraving machine can process a variety of materials, including bamboo, stone, acrylic, clothing, paper, etc., and the 1390 co2 laser engraving machine can also engrave on metal using additive laser marking materials such as “Cermark”. If you are interested in this wood laser engraving machine, please contact BuyCNC.
plastic engraving machine Video
Feature of wood laser engraving machine
Application In Widely Industries For 1390 co2 laser engraving machine
Garments sampling, large width tailoring, leather industry, shoe making field, decoration, furniture, advertisement, package and print, molding and art craft industries, etc. Applicable Materials: Fabrics, leather, paper, bamboo ware, acrylic, glass, films and canvas, etc.
Cutting and Engraving Materials:
Bamboo, jade, marble, glass, crystal, plastic, garments, paper, leather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and other non metal materials. Can also engrave onto metals with the use of an additive laser marking material like “Cermark”.
plastic engraving machine Technical Parameters
|Description||CO2 Laser Engraver Parameters|
|Laser tube power||60W/80w/100w/130w/150w for option|
|Laser-type||Sealed CO2 laser tube, water-cooling, 10.6um|
|Max engraving speed||0-30,000mm/min|
|Max cutting speed||0-24,000mm/min|
|Laser output control||1-100% software setting|
|Location precision||less than 0.01mm|
|Highest scanning precision||50-1000DPI|
|Operating temperature||0 – 45℃|
|Operating humidity||5- 95% non-condensing|
|Minimum shaping character||English 1×1 mm|
|Driving system||Micro-step motor and amplifiers|
|Cooling mode||Freon-based chiller and water flow sensor|
|Auxiliary equipment||Vacuum/Exhaust fan, air-exhaust hose, air-assist pump|
|Work surface||Iron honeycomb or Aluminuim alloy blade|
|Compatible software||TAJIMA, CorelDraw, AutoCAD, Photoshop, …and more|
|File formats supported||JPG, BMP, GIF, PNG, MNG, BMP, PLT, DST, DXF, AI, DSB|
|Color separation||Uses color property to set function, speed, and laser power|
Main Parts of acrylic laser engraving machine
Easy to Use LCD Control Panel
This is the LCD control panel，User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the X or Y axis, LCD Viewing Display, Z-Axis up/down, Control Interior light.
Ruida Main Control board
This is the ruida main control board,Developed by Ruida company, this control system is mature, stable and has strong anti-interference ability. It can be connected to computer or USB flash disk.
The heart of the laser machine is the industry leading Ruida controller. The Ruida motion controller is connected to the computer by USB connection. The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Ruida controller has RAM onboard to store large projects without re-downloading from your computer.
E-stop and U-disk port
In case of emergency, the emergency stop switch can quickly shut down the machine and stop the machine to avoid casualties and losses.
This is the laser head,The Co2 laser engraving machine supply long laser head to make sure to process the thickness material cutting, it is high precision and durable.
The standard laser tube is 80w. wood laser engraving machine supplies high quality 80-180w laser tube for your choice, you can choose according to your work and the workpiece thickness.
The laser output is stable. The discharge tube is catalyst coated，the working life is much increased. Compared to similar product, the tube body length is shorter, the laser beam mode is better, the cutting speed is higher.
This laser machine is should NOT be considered as portable for a weekend project. The main frame is a sheet metal cabinet that does not come apart easily. This enables the machine to be much more rigid and utilizes more verticle space for the Z movement, motors, small parts box, and the integrated vacuum table.
Big stepper motor
Optional Parts of affordable laser engraving machine 1390
Automatic up-down table
Projects of laser photo engraving machine
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for laser wood engraving machine price
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the laser engraving machine price.
Packing for wood laser engraving machine
- Step 1: PVC film packing, which can ensure that the plastic engraving machine is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of 1390 co2 laser engraving machine
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all laser engraving machine price.
After-Sale Service of 1390 co2 laser engraving machine
- The warranty period is 2 years for the acrylic laser engraving machine.
- When you need to replace the wearing parts of laser engraving machine, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The laser engraving machine for plastic software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for 4×8 CNC router machine sale installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the affordable laser engraving machine 1390 overseas.
Delivery for laser photo engraving machine
All of the plastic engraving machine can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.
The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.
You can get the plastic engraving machine directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an wood laser engraving machine from BuyCNC.
Want to Get the CO2 Laser Engraving Machine Price?Get Free Consultation Now!!!
