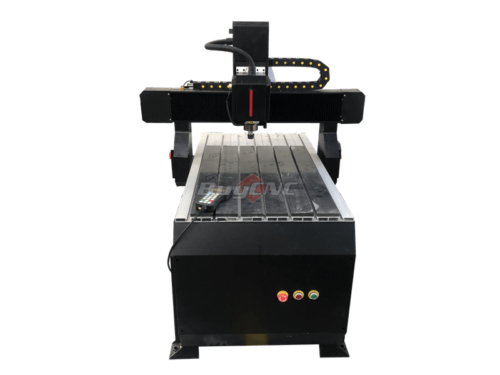

CNC Router Sign Making Machine for Sale
If you have a small shop or want to open a small shop to engage in CNC router industry, then this CNC router sign making machine is your best choice.This machine is the best CNC router for small shop, because it is a 6090 CNC router machine, It has a small footprint, it does not take up too much space in your factory. It is very convenient to move. And as the best CNC router for sign making, this machine can process many different materials, such as: wood, acrylic, MDF, plywood , ABS, OSB, foam, aluminum, stone, etc. It is widely used in sign, furniture, stone, gift, decoration, musical instrument, metal processing industry and seriou shobbyist. You can also use this CNC router signs machine to realize CNC router wood design. The most important thing is that the price of this machine is very cheap, if you really want to buy, we can also give you a preferential price.
CNC Router Sign Making machine Video
Feature of CNC Router Signs Machine
Cast iron frame and small footprint For CNC Router Signs Machine
The base frame of This CNC router sign making machine is cast iron base frame, compared with other aluminum base frame and steel base frame. The cast iron chassis is more stable and will not deform, so it can process very hard materials. As a small 6090 CNC router signs machine, it occupies a small area, and as a gantry moving machine, it can help you The factory saves space.
DSP controller and High Quality Axis of CNC Router Sign Making
The control system of CNC router sign making machine is DSP controller, this controller is a offline controller, it supports controlling the machine without connecting to the computer. And the X/Y/Z axis of this machine adopts Taiwan Hiwin square linear rails and high precision Taiwan TBI ballscrewm which makes the machine with higher precsion and more durable.The Dust proof on X/Z axis can make the machine keep away from the dust.
Stepper Motor And Water-Cooled Spindle of 6090 CNC router
The 6090 CNC router signs machine adopts the High subdivision Nema 34 450A stepper motor,if you don't like this stepper motor,you also can choose the servo motor for option.The spindle of the small CNC router sign making machine is 1.5kw water -cooled spindle, this spindle has good heat dissipation effect and frequency conversion function.
Application In Widely Industries For Affordable CNC Router Sign Making Machine
| CNC Signs Making Machine Application Industry | Advertising Industry | |
| Sign Making Industry | ||
| Decoration Industry | ||
| Musical Instrument Industry | ||
| Gift Customization Industry | ||
| Art Model Industry | ||
| Other | ||
| Material that can be cut by Cheap CNC router | Wood | MDF |
| Plywood | Carbon Fiber | |
| Composite Board | Melamine Board | |
| Acrylic | Other | |
CNC Router Signs Machine Technical Parameters
| Descriptions | CNC Router Signs Parameters |
| Model | AMN-6090-B |
| Working Area | 600*900*150mm |
| Machine Frame | Iron cast |
| Spindle Power | 1.5KW variable speed water cooling spindle |
| Accuracy | 0.015mm |
| Table Surface | Vacuum and Aluminum T-slot table |
| X,Y,Z Rail and Transmission | High precision ball screw |
| Max. Rapid Travel Rate | 15,000mm/min |
| Max. Working Speed | 10,000mm/min |
| Spindle Speed | 0-24,000RPM |
| Drive Motors | Stepper motor Nema 34 450A |
| Working Voltage | AC 220V/50-60Hz |
| Command Language | G Code |
| Operating System | DSP Controller |
| Interface | Ethernet or USB |
| Software capabilities | Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc. |
| Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
| Net/Gross Weight | 300kg/350kg |
| Packing Size | 1.6*1.3*1.75m |
Main Parts of Cheap CNC Router Signs Making Machine
Iron Cast Base Frame
This is the iron cast base frame,compared with the aluminum machine frame and steel pipe welded frame.This iron cast frame has higher quality, strong bearing capacity, and is not easy to deform. It can make the machine have higher cutting precision. We can safely use it to process materials with higher hardness, and it can prolong the service life of CNC router sign making machine.
Steel welding machine support Frame
This is steel welding support frame,The best CNC router machine support frame is made of welding steel pipes.The function of the support frame is to set up the iron cast main machine bed so that the height of the machine table can reach about 80cm, which is convenient for workers to load and unload materials and observe the processing process of the machine.
1.5KW variable speed water-cooled Spindle
The 6090 CNC Router signs machine comes standard with 1.5kw high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO tool holders. Fully programmable speeds from 6,000 to 24,000 RPM.
Drive Motor Nema 34 450A
This CNC Router machine utilizes brushless micro-stepper motors- Drive Motor Nema 34 450A. These motors require no regular maintenance, therefore reducing any maintenance downtime. The Torque of the motor is about 3NM-4NM.
DSP Hand-Held Controller
This is the latest DSP Control system, this controller is very easy to operate, and it does not require additional connection to the computer, which makes the CNC router signs making machine completely autonomous. You can quickly learn how to operate this controller
Emergency Button
This is the emergency buttons,the button are installed on both side of the gantry. In the event of an emergency, the worker can press the button at any time to stop the machine to protect the safety of the worker and avoid losses.
Hiwin Square Rail&High Precision Ball Screw
CNC Tool Calibration
T-slot aluminum and PVC table
Optional Parts of CNC Router Signs machine
4 Axis Rotary Table
Mach 3 Controller
Oil mist Coolant System
Projects of 6090 CNC Router sign Making machine
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC router signs machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for Small CNC router Sign Making Machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the best CNC router for sign making machine.
Our Service
Packing for CNC Router Signs Machine
- Step 1: PVC film packing, which can ensure that the CNC router sign making machine is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of Cheap CNC router signs machine
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all CNC Router machine cheap.
After-Sale Service of Small CNC Router machine
- The warranty period is 2 years for the CNC wood router design machine.
- When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The CNC router table for sale software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for desktop CNC router machine sale installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the CNC wood router design machine overseas.
Delivery for Cheap CNC Router 6090
All of the cheap CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
