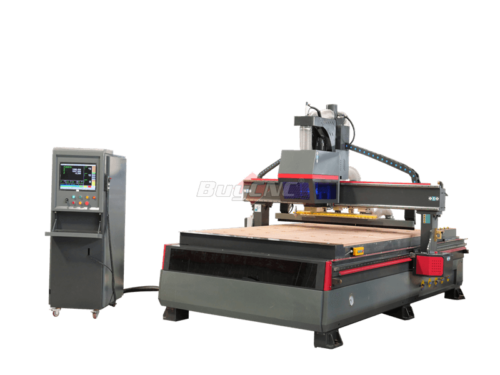

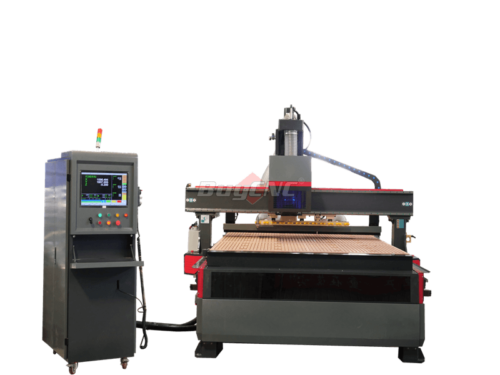

CNC Router Cabinet Doors Machine for Sale
The professional ATC CNC router cabinet making machine is a great machine for processing cabinet.It can improve processing speed and processing quality.This CNC router automatic tool changer machine takes CNC machining to the next level of heavy weights.This big CNC router can realize cutting speeds of over 20 meter per minute and a rapid travel of 60 meter per minute, it will set the pace of production speed at your shop.This big ATC CNC router is equipped with a 9KW air-cooled spindle and an 12-tool high speed tool changer for the complex multi-tasks you give it. Loading of material is accurate every time with built in pop-up pins and controllable dust hood with built-in machine lubrication system. Zoned vacuum table also included (options and upgrades available).
It can process MDF, particleboard, chipboard, wood, OSB, melamine board, plywood, acrylic, plastic, soft metal and many other different materials.If you want to know the small CNC router machine,just look at the 4×4 CNC router or small CNC router.These CNC router is very cheap.
CNC Router Cabinet Machine Video
Feature of ATC CNC cabinet Doors machine
Advanced Linear Tool Changer of ATC CNC router cabinet making machine
The CNC Router Cabinet Making Machine includes a 12-position tool holder. The tool holder moves with the machine frame, The Linear tool changer moving with gantry saves more time than the tool changer fixed at the backend. When changing the tool, the cylinder will rush out of the tool holder, and then change the tool. After the tool change is completed, the tool post returns, and then the spindle starts to work.
Automatic pushing device of Big CNC Router
The CNC router automatic tool changer machine comes with the finished material pushing system&Vacuum brush. The finished material pushing system will push the cutted material move to the front of the machine table, and at the same time, the vacuum brush at the back of the beam will suck the small wood chips that left on the table. Prevents the scum from affecting the vacuum sucking function. It will make the machine vacuum suck the material more firmly.
Vacuum Dust Collecting and Auto Loading/unloading System
This CNC router cabinet doors machine is equipped with a vacuum cleaning system and an automatic loading and unloading system.Double vacuum dust collecting system makes woodworking place cleaner.The ATC big CNC router Machine comes with a 5.5kw dust collector, which is powerful enough for collect the. It will make your workshop without dust.The automaitc loading and unloading system, and the boring head is for option. Conveyor table is located at the front end of the machine. The material after being cut wiil be pushed to the conveyor table. When the workers sort the finised materials, the hose machine can work at the same time, which will improve the working efficiency.
Application In Widely Industries For ATC CNC Router Cabinet Machine
| ATC CNC Cabinet Application Industry | Cabinet Industry | |
| Furniture Industry | ||
| Decoration Industry | ||
| Musical Instrument Industry | ||
| Gift Customization Industry | ||
| Art Model Industry | ||
| Other | ||
| Material that can be cut by Big CNC router | Wood | MDF |
| Plywood | OSB | |
| Composite Board | Melamine Board | |
| Acrylic | Other | |
ATC Big CNC Router Technical Parameters
| Description | Big CNC Router Parameters |
| Model | APS-2030 |
| Working Size | 1300*2500mm/4x8ft |
| 1500*3000mm/5x10ft | |
| 2000*3000mm/7x10ft | |
| 2000*4000mm/7x13ft Other size | |
| Spindle Power | 9kw ATC air cooling spindle |
| Accuracy | ±0.01/2000mm |
| CNC Router Table Surface | Double layer Vacuum table |
| Frame | Thicken steel Square Heavy structure |
| X, Y Structure | Gear and rack Transmission |
| Z Structure | Taiwan TBI Ball Screw |
| Max. Rapid Travel Rate | 80m/min |
| Max. Working Speed | 40m/min |
| Spindle Speed | 0-24,000RPM |
| Collet | ER25 |
| Drive Motors | Syntec servo motor and driver |
| Working Voltage | AC380V/3PH/50Hz |
| Command Language | G Code |
| Operating System | Syntec Controller |
| Drill Bang | FAM 5+4 Vertical (for option) |
| Software | Vectric Aspire/AlphaCAM/Cabinet Version |
| Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Main Parts of CNC Router Cabinet Doors Machine
Syntec FC 60WA Controller
This Syntec Controller is with high precision, digital communication mode: no signal drift problem, command and feedback data accuracy up to 32-bit.And it has higher reliability, anti-interference ability is stronger, there will be no pulse loss phenomenon.The Syntec FC-60WA’s bus communication port of the PLC can be connected to multiple servos, and the servo can be plugged in with a simple RJ45 port to shorten the construction period.Meanwhile,The Syntec FC-60WA can develop more powerful software devices without additional hardware or wiring.
Syntec Absolute Value Servo Motor
This is the Syntec Absolute Value Servo Motor,The absolute value servo motor does not need to return to the origin when the machine is turned on. Compared with the traditional servo motor, the absolute value servo motor has higher precision and higher efficiency.
Japan Shimpo Gear Reducer
It is the japan shimpo gear reducer,our CNC router cabinet making machine utilizes this gear reducer. These gear reducers are with high precision, and it can increase torque, therefore make the motor more powerful.
12-position Tool Rack
The CNC router automatic tool changer machine includes an 12-position tool rack. The tool rack move together with the machine gantry, which will save the tool change time.
When changing the tool, the cylinder will punch the tool rack out and then change the tool. After the tool change is finished, the tool rack go back and then the spindle start to work.
9KW High Frequency Automatic Tool Changer Spindle
Drive Train Assembly
Taiwan Hiwin or PMI square rail&High quality helical rack pinion
Vacuum table
Vacuum pump
Dust collector
Optional Parts of ATC CNC Router Cabinet machine
Automatic loading&Unloading system
Italy FAM Drilling Head
scissor lift
Projects of CNC Router Cabinet Making Machine
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for CNC Cabinet Doors machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the 2030 ATC Big CNC router machine.
Our Service
Packing for CNC Router Cabinet Doors Machine
- Step 1: PVC film packing, which can ensure that the CNC router atc is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of 2030 Big CNC Router
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all CNC router automatic tool changer machine.
After-Sale Service of 2030 CNC Router for sale
- The warranty period is 2 years for the Atc big CNC router.
- When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The CNC router cabinet doors machine software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for atc 2030 CNC router machine sale installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the big CNC router overseas.
Delivery for CNC Router Cabinet doors Machine
All of the cheap CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
