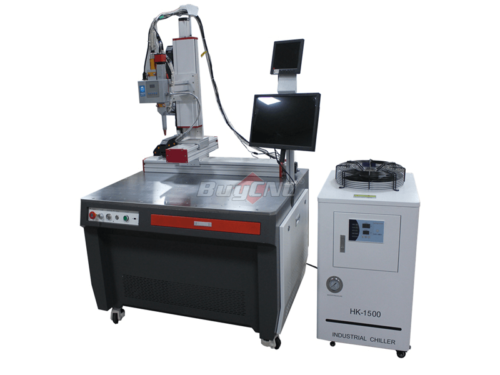

automatic laser welding machine for Sale
The automatic laser welding machine includes X, Y, Z axis linear motion and R axis rotary motion to realize the linear or curved motion of the welding space and the welding angle adjustment of the welding torch to the workpiece, thereby completing the welding of various special-shaped welds. The X, Y, and Z axis motion systems are driven by AC servo motors, driven by ball screws and guided by guide rails to achieve precise control of walking. It can manually adjust and control the welding angle adjustment requirements of the welding gun and the workpiece, and cooperate with the X, Y, and Z axes to achieve the completion of the welding process.
fiber laser welder Video
Feature of fiber laser welding machine
High photoelectric conversion rate and high laser power
This fiber laser welding machine adopts ceramic cavity imported from Britain, so its photoelectric conversion efficiency is high, and the attached CCD image monitoring ensures the stability of welding quality. Moreover, the laser power density of this machine is very high. After the workpiece absorbs the laser, the temperature rises rapidly, melts or evaporates. Even if the melting point is high, the hardness and brittle materials are also high.
Environmentally friendly and safe working environment
The working environment of this automatic laser welding machine is very safe, because the laser head is not in contact with the workpiece, the processing tools are free of wear, and because the workpiece is not stressed, it will not pollute the environment, and it is also very safe.
Strong laser processing capability
The automatic laser welding machine has strong laser processing ability. The laser beam is easy to control and combine with precision machinery, precision measurement technology and electronic computer to realize high automation and high machining accuracy.
Application In Widely Industries For Affordable fiber laser welder
| Fiber Laser Welder Application Industry | Auto Parts Industry | |
| Kitchen Parts Industry | ||
| Decoration Industry | ||
| Advertising Industry | ||
| High Digital Industry | ||
| Art Model Industry | ||
| Other | ||
| Material that can be cut by Cheap CNC router | carbon steel | sliver |
| iron | copper | |
| gold | alloy | |
| cooper-brass | Other | |
fiber laser welding machine Technical Parameters
| Product name | Automatic Laser Welder |
| Weight (KG) | 600KG |
| Voltage | 380v |
| Current | 15A |
| Rated Capacity | 50HZ |
| Dimensions | L2500*W1900*H2200mm |
| Certification | CE |
| Laser power | Raycus |
| Motor | Stepper Motor |
| Working Table | T-slot structure |
| Working Area | 500*600mm |
| Welding Material | Metal |
Main Parts of automatic laser welding machine
Stepper Motor
This is the Stepper motor driver, the automatic laser welding machine use this stepper motor to provide the power.The X, Y, Z, and D axes of the workpiece to be welded are step-driven to meet the needs of large strokes
Laser Welder Head
This is the professional laser welder head,The divergence angle of the laser beam can be less than 1 milli-arc, the spot diameter can be as small as micrometers, and the action time can be as short as nanoseconds and picoseconds. The fiber laser welder Controller can weld many materials.
Laser Welder Screen
This is the professional CCD image monitoring system, Drawer-type lens installation facilitates the installation and replacement of various specifications of collimating lenses and focusing lenses, and the entire system is integrated by the waterway. LW410 is equipped with CCD and display module and can be equipped with vision software for welding.
fiber laser welder Button
fiber laser welder Control system
fiber laser welder head
Projects of automatic laser welding machine
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for fiber laser welding machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the laser welding automation machine.
Our Service
Packing for fiber laser welder
- Step 1: PVC film packing, which can ensure that the laser beam welding machine is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of laser beam welding machine
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all laser beam welding machine.
After-Sale Service of metal welder
- The warranty period is 2 years for the automatic laser welding machine.
- When you need to replace the wearing parts of cheap metal welder, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- Thelaser welding automation for sale software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for metal welder machine sale installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the fiber laser welding machine overseas.
Delivery for fiber laser welder
All of the fiber laser welder can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
About BuyCNC
BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.
The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.
You can get the automatic laser welding machine directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an laser welding automation from BuyCNC.
