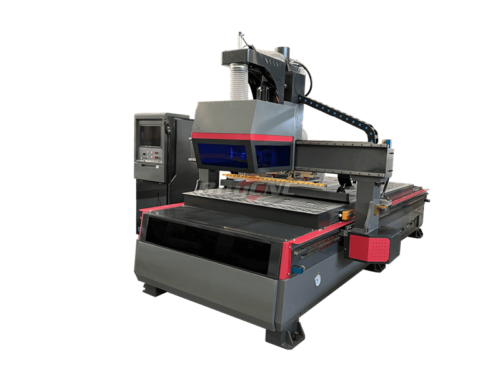

ATC CNC Wood Cutter for Sale
This is the 2022 latest ATC CNC wood cutter router machine, it can have many advantages such as improving production efficiency, simplifying the production process, and producing more products. This CNC router furniture machine can process medium density fiberboard, particle board, particle board, wood, oriented strand board, melamine board, plywood, acrylic, plastic, soft metal and many other different materials.
This ATC spindle CNC router comes standard with a 9KW air-cooled spindle and a 12-tool high-speed tool changer, which can be used for complex multi-tasking. Built-in ejection pin and controllable dust cover with built-in machine lubrication system, every time the material is loaded is accurate. Also includes partition vacuum gauge. These advanced accessories enable the machine to achieve a cutting speed of more than 20 meters per minute and a fast moving speed of 60 meters per minute when working. You can set the speed according to your needs. This CNC router with tool changer is a very cost-effective ATC CNC router machine. If you want to know more about it, please leave us a message.
ATC CNC wood Cutter Video
Feature of ATC Spindle CNC Router
Gantry linear tool magazine and Syntec control system
This ATC CNC wood cutter machine has a 12-bit tool rack. The tool post is moved by the gantry of the bed, which can greatly save the time of tool change. When changing the tool, the cylinder will rush out of the tool holder and then change the tool. After the tool change is completed, the tool post returns and the spindle starts to work. This gantry-type linear tool magazine movement saves time compared to the fixed tool magazine at the rear end, and can improve machine production efficiency. And the control system used by this machine is a professional Syntec bus absolute value control system, which is a very advanced system that supports a variety of commands and modes, has strong stability and high control accuracy.
9kw high frequency ATC spindle and finished material pushing system
This atc spindle CNC router is equipped with a 9kw high-frequency air-cooled spindle as standard. This spindle has fast processing speed, high processing accuracy, does not require maintenance, and has a long service life. And this advanced CNC wood cutter machine is also equipped with a finished material pushing system. When the workpiece is processed, the cut material will be pushed to the front of the machine, and the vacuum brush at the back of the beam will stay on the table. The small sawdust is sucked away. Prevent scum from affecting the vacuum suction function. Make the machine vacuum suction firmer.
A variety of high-quality CNC engraving machine systems and accessories
The CNC wood cutter machine has an AC servo system with automatic calibration function, Double vacuum cleaning system and automatic loading and unloading system. On the premise of ensuring the working efficiency of the machine, it can also make the factory space cleaner and avoid too much dust and wood chips after processing. Not only that, this machine does not occupy a large area, does not need to be assembled, and can work after it arrives.
Application In Widely Industries For CNC router furniture machine
| CNC wood cutter Application Industry | Furniture Industry | |
| Advertising Industry | ||
| Decoration Industry | ||
| Musical Instrument Industry | ||
| Gift Customization Industry | ||
| Art Model Industry | ||
| Other | ||
| Material that can be cut by ATC CNC router | Wood | MDF |
| Plywood | Carbon Fiber | |
| Composite Board | Melamine Board | |
| Acrylic | Other | |
Detailed Application Industries:
Customized furniture, wardrobes, cabinets, kitchen cabinets, panel furniture, cabinet doors, cabinets, game cabinets, cloakroom cabinets, wine cabinets, office furniture, melamine board furniture cabinets, wood-based panel furniture cabinets, particle board furniture cabinets, plywood cabinet furniture, solid wood Plug-in panel furniture, bookcases, storage cabinets, chest of drawers, living room furniture, bedroom furniture, children’s furniture, study furniture, dining tables, dining chairs, coffee tables, Nordic furniture, modern furniture, blockboard furniture, MDF cabinets, oak boards Furniture, disassembly and assembly furniture.
ATC CNC wood Cutter Technical Parameters
| Description | CNC Wood Furniture Machine Parameters |
| Model | APS-1325-ZK |
| Working Size | 1300*2500mm/4x8ft |
| 1500*3000mm/5x10ft | |
| 2000*3000mm/7x10ft | |
| CNC Router Table Size | 1450*2950mm |
| Accuracy | ±0.05mm |
| Spindle Power | 9kw ATC air cooling spindle |
| Table Surface | Double layer Vacuum table |
| X, Y Structure | Gear and rack Transmission |
| Z Structure | Taiwan TBI Ball Screw |
| Max. Rapid Travel Rate | 80m/min |
| Max. Working Speed | 40m/min |
| Spindle Speed | 0-24,000RPM for water cooling spindle |
| Collet | ER32 |
| Drive Motors | Syntec servo motor and driver |
| Working Voltage | AC380V/3PH/50Hz (option:220V or custom made) |
| Command Language | G Code |
| Operating System | Taiwan Syntec Bus communication |
| Drill Bang | FAM 5+4 Vertical (for option) |
| Software | Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks,etc. |
| Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Main Parts of CNC router furniture machine
Syntec Bus Communication Controller
This is the Syntec Bus Communication Controller with big screen&Hand-held Pulse Generator. This control system can handle a larger amount of information, supports full digital information exchange, and can transmit multiple parameters, instructions and status data in both directions. In addition, the Syntec bus communication controller has high precision and a digital communication method: it can be perfect without signal drift, and the precision of instructions and feedback data is up to 32 bits.
The Syntec bus communication controller has higher reliability, stronger anti-interference ability, and no pulse loss.Syntec bus communication controller does not require additional hardware or wiring to develop more powerful software devices.
Syntec Absolute Value Servo Motor
This is the AC Servos with automatic calibration,The absolute value servo motor does not need to return to the origin when the machine is turned on. Compared with the traditional servo motor, the absolute value servo motor has higher precision and higher efficiency.
12-position Tool Rack
The CNC wood cutter machine includes an 12-position tool rack. The tool rack move together with the machine gantry, which will save the tool change time. When changing the tool, the cylinder will punch the tool rack out and then change the tool. After the tool change is finished, the tool rack go back and then the spindle start to work.
9KW High Frequency Automatic Tool Changer Spindle
The CNC router furniture machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.
Spindle cover
Pneumatic Material Alignment Stops
Gantry
Gantry Support (Uprights)
Finished material pushing system&Vacuum brush
Base Frame
Optional Parts of ATC CNC wood Router
Italy FAM Drilling Head
Conveyor Table
scissor lift
Projects of ATC Spindle CNC Router
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for CNC router with tool changer
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the CNC router with tool changer.
Our Service
Packing for CNC wood Cutter router
- Step 1: PVC film packing, which can ensure that the CNC router furniture machine is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of CNC router with tool changer
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all 1325 ATC spindle CNC machine.
After-Sale Service of 1325 CNC Router for sale
- The warranty period is 2 years for the CNC router furniture machine.
- When you need to replace the wearing parts of cheap CNC router, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The CNC router cutter for sale software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for CNC wood cutterinstallation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the ATC CNC router overseas.
Delivery for CNC router with tool changer
All of the cheap CNC router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
About BuyCNC
BuyCNC is a leading High-quality CNC Machine supplier in China. BuyCNC develops and sells various CNC machines including CNC Routers, Laser Machines, and Plasma Cutting Machines. Our main products are wood CNC router, stone CNC router, metal CNC router, ATC CNC router, 4 Axis CNC router, 5 Axis CNC router, CO2 laser engraving cutting machine, fiber laser cutting machine, fiber laser marking machine, fiber laser welding machine, and metal plasma cutting machine etc.
The production complies with European standards and international quality control and has FDA, CE, SGS, and ISO9001 certification. The factory produces more than 1,000+ machines annually. And BuyCNC has Rich R & D’s experience which has been focusing on researching, developing, and manufacturing CNC machines for more than 20 years. Serving more than 150 countries and regions, we have 10000+ customers all over the world.
You can get the ATC CNC router wood directly without any CNC router distributor. Don’t hesitate anymore, tell us your needs to buy an cheap CNC router from BuyCNC.
