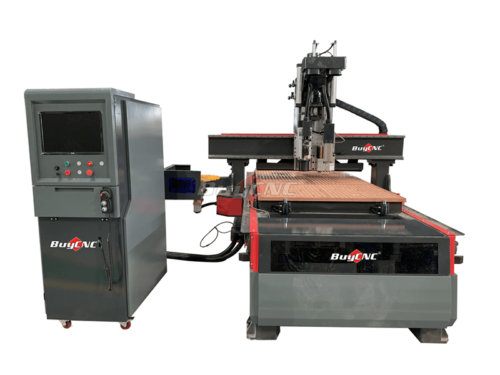

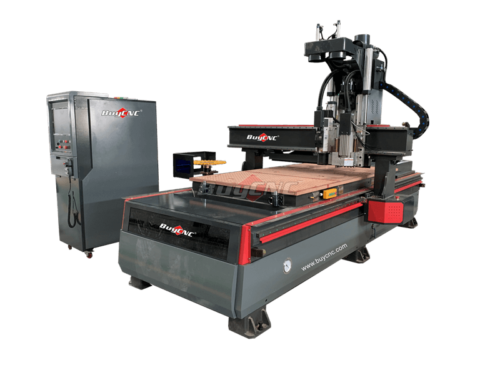

CNC router Cabinet making machine for Sale
This CNC router cabinet making machine is a high-efficiency machine, it is controlled by Syntec CNC controller, this machine with 9kw(12HP) spindle is powerful enough for high speed cutting.And the carousel type tool magazine is driven by a servo motor, which support fast tool change and high precision tool change. This CNC router cabinets machine is with an optional Italian drilling bank for fast hole drilling.
Now,The ATC CNC Nesting machine is a special equipment for customized panel furniture cutting, drilling and groove milling. It is suitable for auxiliary processing of wardrobe, cabinet, computer desk, panel furniture, office furniture, wooden speaker, wooden kitchenware, etc. Because of its automatic processing and production, time-saving, cost saving and other advantages, it is trusted by the majority of furniture manufacturing enterprises.
CNC Router Cabinets Machine Video
Feature of CNC cabinets making Machine
9kw high frequency sipndle and Rotary Carousel magazine
This ATC CNC machine come standard with 9kw high frequency automatic tool changer spindle,this spindle has high cut precision.And this machine has 16 CNC Tool Rotary Carousel magazine,The use of an 16 Tool Rotary Carousel magazine speeds up tool changes assuring faster cycle times increasing production throughput.
Stable structure of this CNC router cabinet making machine
The gantry of this machine is constructed of tubular steel.There are reinforcing ribs welded throughout the length of the column, which will make the beam more steady and firm. This quality engineering and workmanship result in smooth precision cutting. And the base frame of this machine is also welded by heavy steel, so this machine has a longer service life.
Gear rack drive system
The CNC router cabinet machine uses precision Helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.
Application In Widely Industries For Affordable CNC Router Cabinets Machine
Application Industry Of CNC Router Cabinet Making Machine：
Panel furniture, Cabinet, wardrobe, Customized furniture, Office furniture and Interior doors and sliding doors, Cabinet door panel and other industries.
Main Function of CNC Router Cabinets Machine:
Automatic tool change, Cutting, Milling, Hollowing, Slotting, Drilling, etc.
CNC Nesting Machine Technical Parameters
| Descriptions | CNC Cabinets Router Parameters |
| Model | AIS-1325 |
| Working Area | 1300*2500*200mm |
| Machine Frame | heavy-duty tubular steel |
| Spindle Power | 9kw ATC air cooling spindle |
| Accuracy | ±0.01/2000mm |
| Table Surface | Double layer Vacuum table |
| X,Y,Z Rail and Transmission | X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw |
| Max. Rapid Travel Rate | 80m/min |
| Max. Working Speed | 40m/min |
| Spindle Speed | 0-24,000RPM |
| Drive Motors | Syntec Servo motor and driver |
| Working Voltage | AC380V/3PH/50Hz(option:220V) |
| Command Language | G Code |
| Operating System | Taiwan Syntec |
| Drill Bang | FAM 5+4 Vertical (for option) |
| Software capabilities | Vectric Aspire/AlphaCAM/Cabinet Version |
| Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Main Parts of ATC CNC Cabinet Making Machine
9kw High Frequency ATC Air Cooling Spindle
This is 9kw (12HP) high frequency automatic tool changer spindle. It has a long service life and short maintenance period. It is equipped with a pneumatically retractable vacuum hood. And this spindle uses professional ER32 collets and ISO 30 tool holders and fully programmable speeds from 6000 to 24000 RPM.
Syntec FC 60CB Bus Communication Controller
1. Syntec FC-60CB’s bus communication port of the PLC can be connected to multiple servos, and the servo can be plugged in with a simple RJ45 port to shorten the construction period.
2. FC-60CB’s the amount of information is greater: all digital information exchange, can transfer many parameters, instructions and status data in two directions; Syntec 6MB pulse mode can only transfer position or speed information in one direction, can not get more status or parameters of the servo .
3. Syntec FC-60CB is with high precision, digital communication mode: no signal drift problem, command and feedback data accuracy up to 32-bit.
4. Syntec FC-60CB is with higher reliability, anti-interference ability is stronger, there will be no pulse loss phenomenon.
5. Syntec FC-60CB can develop more powerful software devices without additional hardware or wiring.
Leadshine Drive Motors &Japan Shimpo Gear Reducer
The ATC CNC cabinets machine utilizes AC Servo motors powered Leadshine Drives. These motors is with high precision, stable performance, and require no regular maintenance — therefore, reducing any maintenance downtime.Meanwhile this machine utilizes Japan Shimpo gear reducer. These gear reducers are with high precision, and it can increase torque, therefore make the motor more powerful.
16 CNC Tool Rotary Carousel magazine
The use of an 16 Tool Rotary Carousel magazine speeds up tool changes assuring faster cycle times increasing production throughput.
Gantry
Drive Train Assembly
Taiwan Hiwin or PMI square rail&High quality helical rack pinion
CNC Tool Calibration
Vacuum table
Dust collector
Optional Parts of Best CNC Router Cabinet Machine
Conveyor Table
Italy FAM Drilling Head
HSD Aggregate Tool
Projects of CNC Cabinet Making Router
Strong Factory Strength
BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our CNC machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.
High Precision Installation for CNC Cabinet Making Machine
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the ATC CNC router machine.
Our Service
Packing for CNC Nesting Router
- Step 1: PVC film packing, which can ensure that the CNC 1325 router cabinets machine is completely covered, avoiding water and rust.
- Step 2: Wooden box packing, with a fixed template on the outermost layer.
- Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service of 1325 ATC CNC machine
- Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
- Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
- Inquiries and consulting services for all CNC Cabinet Machine.
After-Sale Service of Cabinet CNC Machine for sale
- The warranty period is 2 years for the ATC CNC cabinet machine.
- When you need to replace the wearing parts of cheap CNC machine, we will provide them at the agent price.
- If there are any problems during the warranty period, we will replace the main parts free of charge.
- The CNC router cabinet machine for sale software provides free lifetime update service.
- 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
- We provide English training videos and user manuals for CNC machine sale installation and operation, etc. We can also provide technical guidance remotely.
- Free training at the BuyCNC factory.
- The engineer can repair the CNC Router cabinet making machine overseas.
Delivery for Cabinet CNC Router
All of the cheap CNC cabinet router can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
